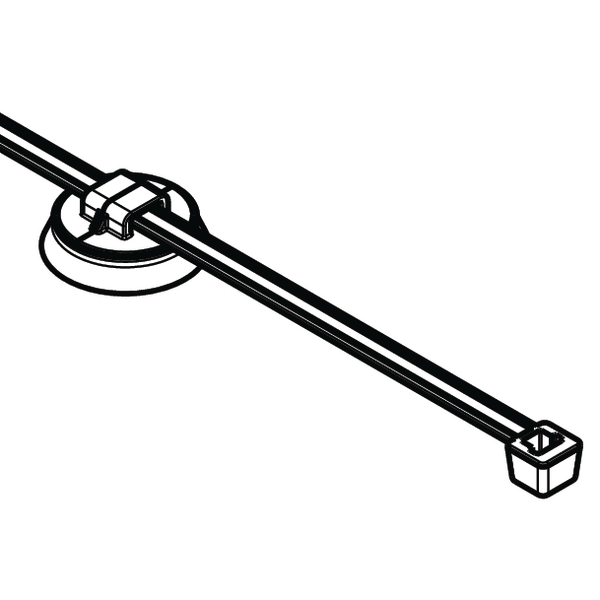

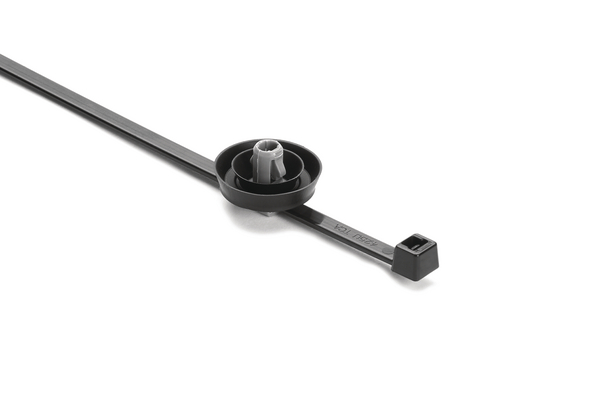

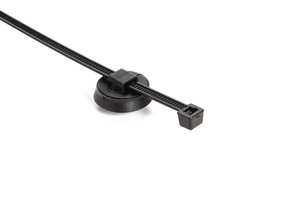

Fixing tie for hole (round), inside serrated, Ø3.0-50.0mm, black/grey, 2000pcs.
Art.-Nr. 156-02380 | T50RSRAH6.5D1.4TSD-PA66HS/TPE-BK/GY |  Details

Tie is rated to 222 N (50 lb) tensile strength to ensure long-term bundling reliability.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Cable Tie Polyamide 6.6, heat stabilised (PA66HS)
    Colour Black (BK), Grey (GY)
    Fixation Method arrowhead
    Identification Plate Position none
    Material Polyamide 6.6, heat stabilised (PA66HS), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION T50RSRAH6.5D1.4TSD-PA66HS/TPE-BK/GY
    Pack Cont. 2000pcs.
    Package Content packed in bag
    Releasable Closure (Yes/No) No
    Technical Description Quote and Sell to GM Only. Please order 156-02705.
    Tie Closure plastic pawl
    Type T50RSRAH6.5D1.4TSD
    Variant Inside Serrated
    Bundle Diameter max (metric) 50.0mm
    Bundle ∅ 3.0-50.0mm
    Bundle ∅ min. 3.0mm
    Disc ∅ 22,3mm
    Height (H) 15.08mm
    Length (L) 202.0mm
    Min.Tensile Strength 225N
    Panel Thickness max. 1.2 - 1.8mm
    Width (W) 22.3mm
    for Hole ∅ (FH) 6.35 mm (hexagonal), 6.5 mm
    for Panel Thickness min - max 1.2 - 1.8 mm
    CE Certification No
    CSA Certified No
    Operating Temperature -40 °C to +125 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised No
    Country of Origin MX
    GTIN-13 / EAN 4031026726861
    Packaging 1 - Weight (kg) 0.002kg
    Packaging 3 - Height (m) 0.20479m
    Packaging 3 - Length (m) 0.51594m
    Packaging 3 - Qty 2000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0332m³
    Packaging 3 - Weight (kg) 5.87kg
    Packaging 3 - Width (m) 0.31433m
    Packaging 4 - Qty 80000
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121717
