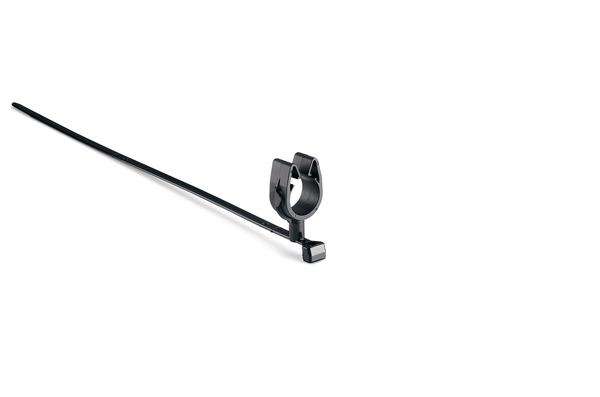

Fixing tie with pipe/tube holder, ⌀13.0-15.8mm, black, 2000pcs.
Art.-Nr. 156-01789
| T50SMVCMOC14M180-PA66HIRHSUV-BK
|
Copied
- Clips can be attached to the panel prior to installing the pipe or hose
- Bundle can rotate to any orientation, allowing routing in any direction regardless of mounting point
- All-in-one bundling and mounting solution reduces costs
Request quote
More products in this product group:
| Application | These inside serrated fixing ties provide the opportunity to attach a wire or hose to an existing harness. Offering a full 360 degrees rotation, the wire/hose can be oriented in any direction in relation to the main harness. |
| Cable ⌀ max | 50.0mm |
| Cable ⌀ min | 2.0mm |
| Colour | Black (BK) |
| Fixation Method | Omega Clip |
| Identification Plate Position | none |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| Min.Tensile Strength | 225N |
| PART DESCRIPTION | T50SMVCMOC14M180-PA66HIRHSUV-BK |
| Package Content | 2000pcs. |
| Package Content packed in | pack |
| Product Family | 2-Piece Fixing Ties with clip, twistable 360° |
| Product Group | 2-piece fixing ties with pipe clip |
| Type | T50SMVCMOC14M180 |
| UV-Stabilised | Yes |
| Weight/Unit | 0.003kg |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026587448 |
| Packaging 1 - Height (m) | 0.21m |
| Packaging 1 - Length (m) | 0.608m |
| Packaging 1 - Qty | 2000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.05068896m³ |
| Packaging 1 - Weight (kg) | 6.0001kg |
| Packaging 1 - Width (m) | 0.397m |
| Packaging 3 - Height (m) | 0.20954999999999998m |
| Packaging 3 - Length (m) | 0.6080124999999999m |
| Packaging 3 - Qty | 2000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0506m³ |
| Packaging 3 - Weight (kg) | 6.8801kg |
| Packaging 3 - Width (m) | 0.396875m |
| Packaging 4 - Height (m) | 1.244m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 30000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.194m³ |
| Packaging 4 - Weight (kg) | 125.2kg |
| Packaging 4 - Width (m) | 0.8m |
