30/06/2026

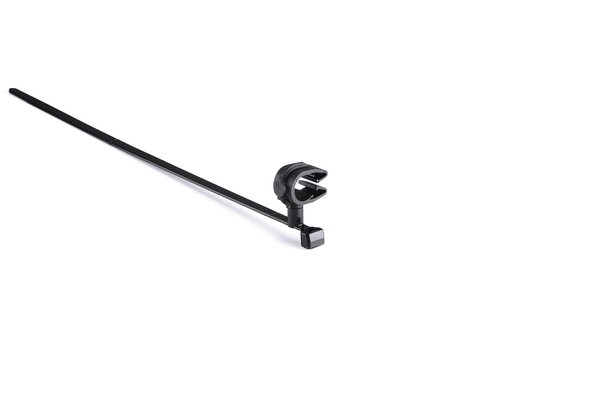

Fixing tie with pipe/tube holder, ⌀9.5-11.5mm, black, 2000


Art.-Nr. 156-02244

| T50SVCMOC10M-PA66HIRHSUV-BK

 |

Copied
Independent rotation allows for adjustable routing orientation.

    Add to watchlist
    Request quote
    Downloads e-Learning
    Cable ⌀ max 35.0mm
    Cable ⌀ min 2.0mm
    Colour Black (BK)
    Fixation Method Omega Clip
    Identification Plate Position none
    Key product features lockable, rotatable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Min.Tensile Strength 225N
    PART DESCRIPTION T50SVCMOC10M-PA66HIRHSUV-BK
    Package Content 2000
    Package Content packed in pack
    Product Group 2-piece fixing ties with pipe clip
    Type T50SVCMOC10M
    UV-Stabilised Yes
    Bundle ⌀ 9.5-11.5mm
    Bundle ⌀ max. 11.5mm
    Bundle ⌀ min. 9.5mm
    Bundle Diameter Nom. (ND) 10.0 mm
    Depth (D) 10.0mm
    Height (H) 31.6mm
    Length (L) 19.6mm
    Length (L2) 16.3mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026717746
    Packaging 1 - Qty 2000
    Packaging 1 - Type pack
    Packaging 1 - Weight (kg) 201.21kg
    Packaging 3 - Height (m) 0.216m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0521m³
    Packaging 3 - Width (m) 0.396875m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703

    Solutions

    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
