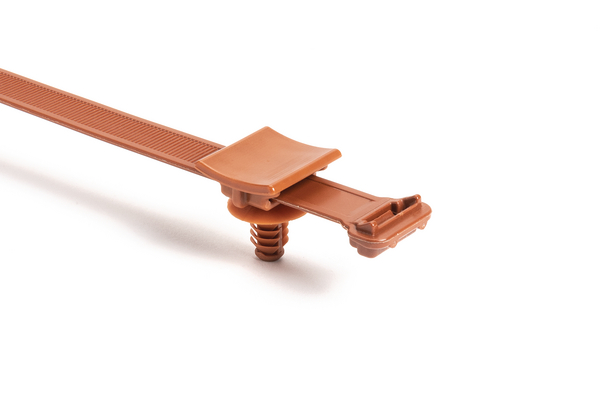

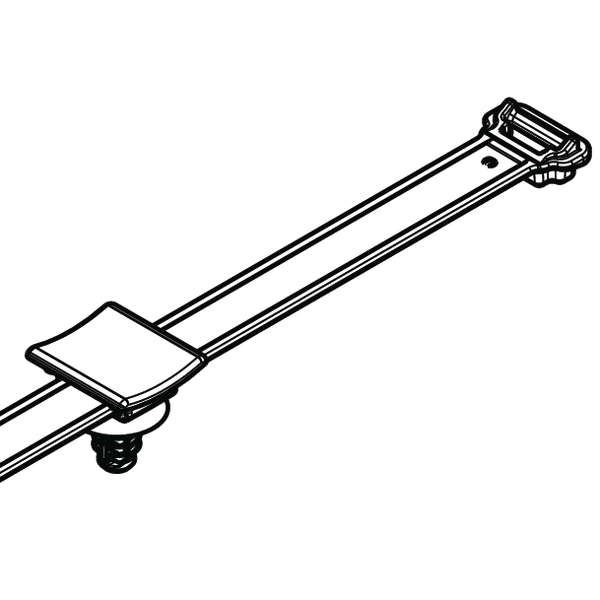

Fixing tie for hole (round), inside serrated, ⌀9.4-57.15mm, brown, 1200pcs.
Art.-Nr. 156-02434 | WSSDFTM8WSSDSET-PA46-BN |

Copied
PA46 nylon material provides great performance at up to 135°F continuous operating temperature.
These fir tree fixings can also be used in threaded, blind holes.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Brown (BN)
    Fixation Method Fir tree for round holes
    Identification Plate Position none
    Material Polyamide 4.6 (PA46)
    Min.Tensile Strength 533N
    PART DESCRIPTION WSSDFTM8WSSDSET-PA46-BN
    Package Content 1200pcs.
    Package Content packed in pack
    Releasable Closure (Yes/No) No
    Tie Closure plastic pawl
    Type WSSDFTM8WSSDSET
    UV-Stabilised No
    Variant Inside Serrated
    Bundle ⌀ 9.4-57.15mm
    Bundle ⌀ max. 57.15mm
    Bundle ⌀ min. 9.4mm
    Height (H) 22.77mm
    Length (L) 231.14mm
    Panel Thickness max. 0.6 - 6.0mm
    Width (W) 22.6mm
    for Hole ⌀ (FH) 6.1 - 7.0 mm, M8 Threaded
    for Panel Thickness min - max 0.6 - 6 mm
    for Panel Thickness min - max 0 - 0.2 "
    CE Certification No
    CSA Certified No
    Flammability UL 94 V2
    Halogen-free Yes
    Operating Temperature -40 °C to +130 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026726847
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Width (m) 0.2921m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
    UNSPSC Key 39121703
