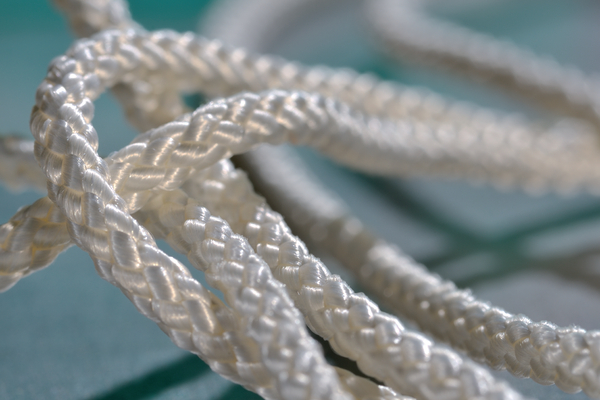

Lacing tape, Round, braided, 1380N, -55 °C to +260 °C, intermittent +360 °C, natural, L=100m
Art.-Nr. 174-00230 | LCHT5A30NA-MPIA-NA |

Copied
Lacing cord LCHT5A30NA

    • Excellent resistance to high temperatures
    • Flame resistant
    • Very good tensile strength
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Natural with coloured tracer (NACTR)
    Material Meta-Aramide (MPIA)
    Min.Tensile Strength 1380N
    PART DESCRIPTION LCHT5A30NA-MPIA-NA
    Package Content 100m
    Package Content packed in reel
    Product Family Lacing cord LCHT5A30NA
    Product Group Lacing cord made of meta-aramide
    Short Description Lacing cord 100 m, MPIA, natural with coloured tracer
    Type LCHT5A30NA
    Weight/Unit 0.01054kg
    Diameter (D) 3.0mm
    Length (L) 100m
    Nominal ⌀ 3.0mm
    Weight 5.54g/m
    ELV compliant (Article 4 - 2) YES
    Finish A = Uncoated
    Hazardous Goods No
    Lacing Shape Round, braided
    Operating Temperature -55 °C to +260 °C, intermittent +360 °C
    ROHS compliant Yes
    Specifications
    Specifications NSA8420
    Surface Finishing Shortcut A
    Country of Origin FR
    Customs Number 56075011
    GTIN-13 / EAN 4031026272078
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 1.054kg
    Packaging 3 - Height (m) 0.385m
    Packaging 3 - Length (m) 0.38m
    Packaging 3 - Qty 800
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0556m³
    Packaging 3 - Weight (kg) 8.982kg
    Packaging 3 - Width (m) 0.38m
    Packaging 4 - Height (m) 1.299m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 14400
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.247m³
    Packaging 4 - Weight (kg) 182.676kg
    Packaging 4 - Width (m) 0.8m
    Reel Length 100m
    ETIM 7.0 Key EC000046
    ETIM 8.0 Key EC000046
    ETIM 9.0 Key EC000046
