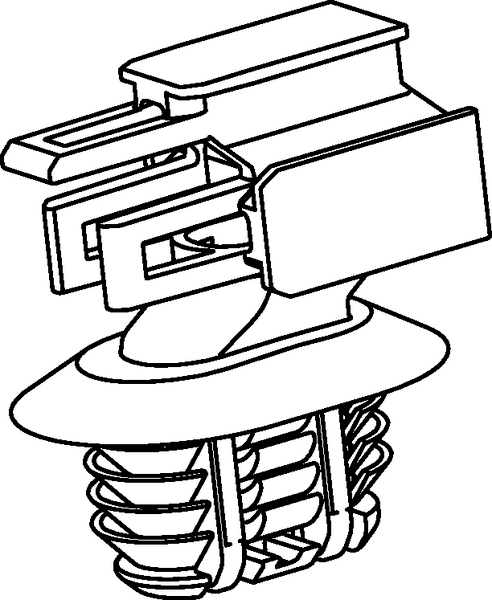

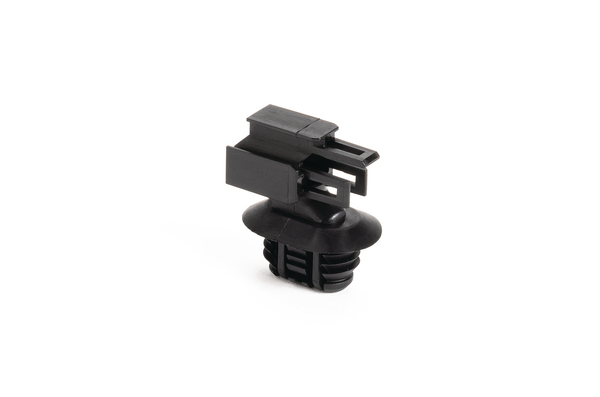

Connector clip, EWCAP-005-11, black, 3000Carton
Art.-Nr. 133-04068
| 3FAKRACCBOX9X17OFT-PA66HIRHS-BK
|
Copied
- 3-Position 7 mm connector clip provides compact configuration for constricted areas.
- Short fir tree avoids obstructions on opposite side of the panel.
- Oval fir tree won't rotate in 9 x 17 mm oval holes.
- Mount design provides low insertion with high extraction resistance for easy installation and reliable performance.
- Connector clip design meets USCAR EWCAP-005-7 clip slot specifications, assuring compliance.
Request your individual offer now
Request quote
| Application | Connector clips offer an easy way to secure and mount wire harnesses. Commonly used clip size for coax lines for cameras and sensors. |
| Colour | Black (BK) |
| Description | Connector clips offer an easy way to secure and mount wire harnesses. Commonly used clip size for coax lines for cameras and sensors. |
| Fixation Method | Fir Tree |
| Material | Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS) |
| PART DESCRIPTION | 3FAKRACCBOX9X17OFT-PA66HIRHS-BK |
| Package Content | 3000Carton |
| Package Content packed in | carton |
| Short Description | Connector clip, EWCAP-005-11, black, 3000Carton |
| Type | 3FAKRACCBOX9X17OFT |
| Variant | 9.0 x 17.0 mm |
| Weight/Unit | 0.00529kg |
Download
|
|
|
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026626147 |
| Packaging 1 - Height (m) | 0.21m |
| Packaging 1 - Length (m) | 0.51m |
| Packaging 1 - Qty | 3000 |
| Packaging 1 - Type | bag |
| Packaging 1 - Volume (m³) | 0.041769m³ |
| Packaging 1 - Weight (kg) | 15.870001kg |
| Packaging 1 - Width (m) | 0.39m |
| Packaging 3 - Height (m) | 0.20955m |
| Packaging 3 - Length (m) | 0.5175m |
| Packaging 3 - Qty | 3000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0344m³ |
| Packaging 3 - Weight (kg) | 16.480001kg |
| Packaging 3 - Width (m) | 0.3175m |
| Packaging 4 - Height (m) | 1.194m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 60000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.146m³ |
| Packaging 4 - Weight (kg) | 350.6kg |
| Packaging 4 - Width (m) | 0.8m |
