21/05/2025

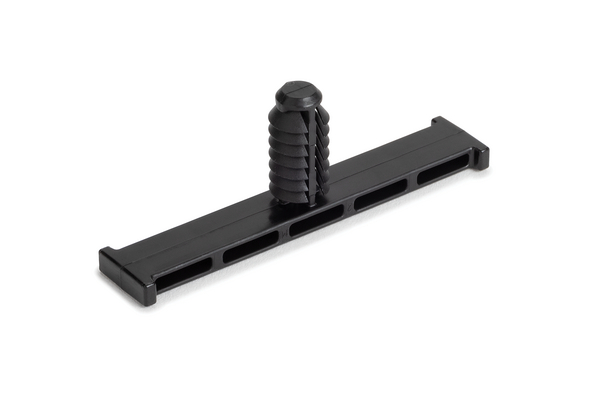

Bundling clip for hole (round), L=56.0mm, black, 2500pcs.
Art.-Nr. 151-03473 | BC56FT6.5-PA66HIRHSUV-BK |

Copied

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Fir tree for round holes
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION BC56FT6.5-PA66HIRHSUV-BK
    Pack Cont. 2500pcs.
    Package Content packed in pack
    Type BC56FT6.5
    Bundling Bar Length 2.20"
    Bundling Bar Length 56.0mm
    Height (H) 19.7mm
    Height (H2) 16.1mm
    Hole Depth 0.60mm
    Hole Depth 6.0mm
    Length (L) 56.0mm
    Panel Thickness max. 0.6 - 6.0mm
    Weight/Unit 0.01kg
    Width (W) 8.0mm
    for Hole ⌀ (FH) 6.1 - 7.0 mm
    for Panel Thickness min - max 0.6 - 6 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026666556
    Packaging 1 - Type box
    Packaging 3 - Height (m) 0.0000762m
    Packaging 3 - Length (m) 0.482599999999999m
    Packaging 3 - Qty 2500
    Packaging 3 - Type bag
    Packaging 3 - Volume (m³) 0m³
    Packaging 3 - Weight (kg) 25.0kg
    Packaging 3 - Width (m) 0.1016m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
