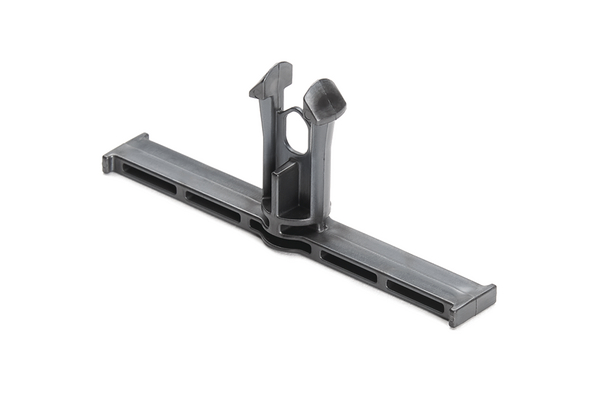

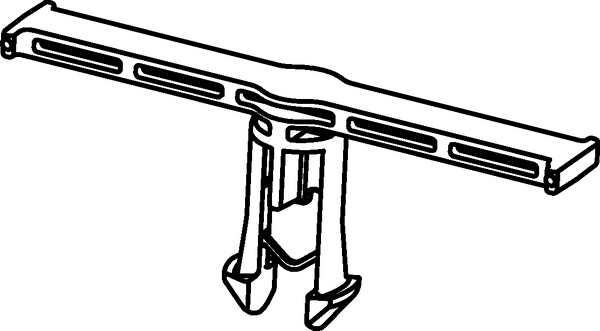

Bundling clip for hole (round), L=75.0mm, silver, 2000pcs.
Art.-Nr. 151-02177 | BCATC4-PPS-SR |

Copied

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Silver (SR)
    Fixation Method arrowhead
    Material Polyphenylene Sulfide (PPS)
    PART DESCRIPTION BCATC4-PPS-SR
    Pack Cont. 2000pcs.
    Package Content packed in pack
    Type BCATC4
    Bundling Bar Length 2.95"
    Bundling Bar Length 75.0mm
    Height (H) 27.34mm
    Length (L) 75.0mm
    Panel Thickness max. 13.5 - 15.0mm
    UV-Stabilised No
    Weight/Unit 0.003336kg
    Width (W) 11.43mm
    for Hole ⌀ (FH) 11.7 - 13.0 mm
    for Panel Thickness min - max 13.5 - 15 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +150 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026587950
    Packaging 1 - Height (m) 0.225m
    Packaging 1 - Length (m) 0.505m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.035791875m³
    Packaging 1 - Weight (kg) 6.672001kg
    Packaging 1 - Width (m) 0.315m
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Weight (kg) 7.492001kg
    Packaging 3 - Width (m) 0.2921m
    Packaging 4 - Height (m) 1.269m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.218m³
    Packaging 4 - Weight (kg) 110.904kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
