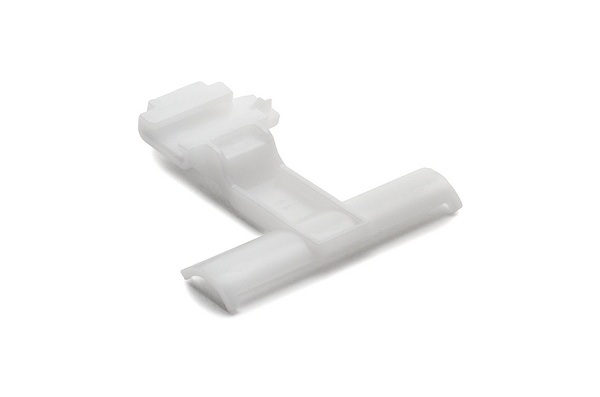

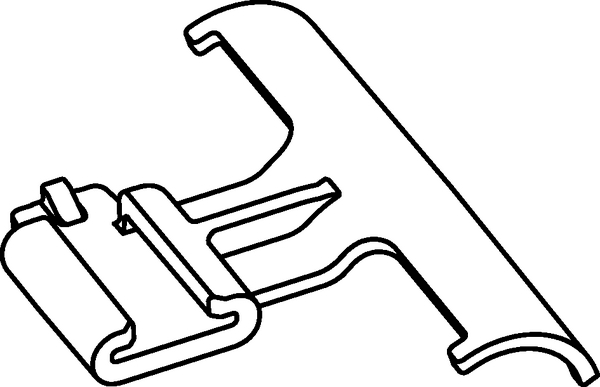

Connector clip for connector, natural, 2000pcs.

Art.-Nr. 151-03150

| BCBRKT28OS11CC-POM-NA

|

Easy to install by simply pushing into place
Connection can be released (non-destructive)
One fit tree foot part can be used for a variety of panel thicknesses
Disc covers the hole to prevent dust and dirt gaining access

Add to watchlist

Request quote

Downloads

Base Data

Application	The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour	Natural (NA)
Material	Polyacetal (POM)
PART DESCRIPTION	BCBRKT28OS11CC-POM-NA
Package Content	2000pcs.
Package Content packed in	box
Type	BCBRKT28OS11CC
Type of connection	USCAR11
UV-Stabilised	No

Product Dimensions

Bundling Bar Length	1.97"
Bundling Bar Length	50.0mm
Height (H)	10.1mm
Length (L)	50.0mm
Offset Length	31.8mm
Width (W)	47.7mm

Specifications

CE Certification	No
CSA Certified	No
Operating Temperature	-40 °C to +90 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	US
GTIN-13 / EAN	4031026635095
Packaging 3 - Height (m)	0.20955m
Packaging 3 - Length (m)	0.5175m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0344m³
Packaging 3 - Width (m)	0.3175m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
