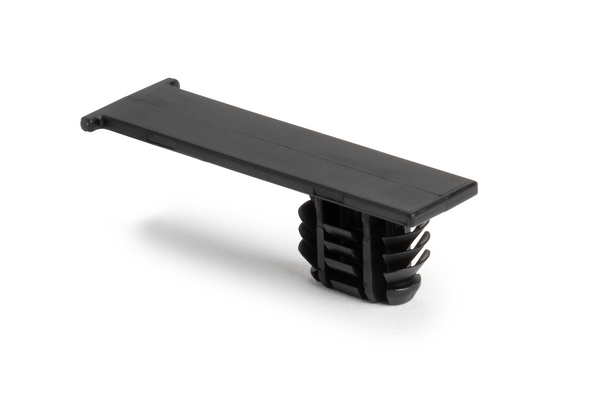

Bundling clip for hole (oval), black, 8000Carton
Art.-Nr. 151-04539 | BCSFTOVAL2-PA66HIRHSUV-BK |

Copied

    • Simple installation, tool-free
    • Is attached to the bundle element with cable ties or adhesive tape
    • The oval base geometry serves as anti-twist protection and for defined cable routing
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION BCSFTOVAL2-PA66HIRHSUV-BK
    Pack Cont. 8000Carton
    Package Content packed in carton
    Product Family Oval holes
    Product Group Bundling Clips with Fir Tree
    Type BCSFTOVAL2
    Fixing Hole Shape Oval
    Height (H) 11.6mm
    Height (H2) 10.1mm
    Length (L) 38.7mm
    Panel Thickness max. 0.6 - 2.5mm
    UV-Stabilised No
    Weight/Unit 16.274894kg
    Width (W) 7.37mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 2.5 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026773353
    Packaging 1 - Qty 8000
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.37465m
    Packaging 3 - Length (m) 0.59055m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0646m³
    Packaging 3 - Width (m) 0.2921m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
