BHM8CC17-POM-BK

Art.-Nr. 151-03664

| BHM8CC17-POM/SpS-BK

|

Easy to install by simply pushing into place
Connection can be released (non-destructive)
One fit tree foot part can be used for a variety of panel thicknesses
Disc covers the hole to prevent dust and dirt gaining access

Add to watchlist

Request quote

Downloads

Base Data

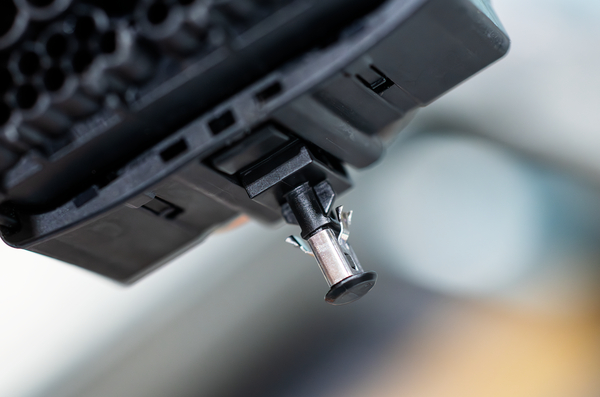

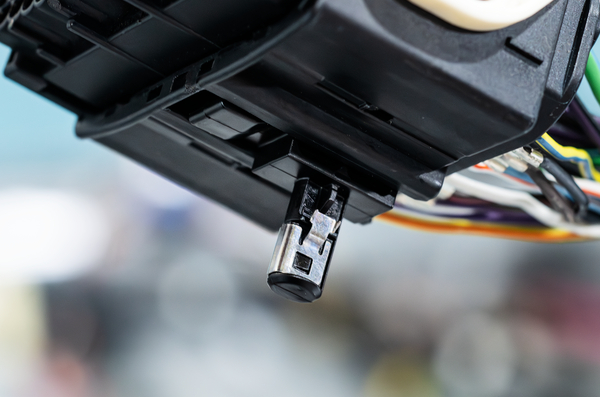

Application	The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour	Black (BK)
Material	Polyacetal (POM)
PART DESCRIPTION	BHM8CC17-POM-BK
Package Content	2500pcs.
Package Content packed in	box
Type	BHM8CC17
Type of connection	USCAR EWCAP-005
UV-Stabilised	No

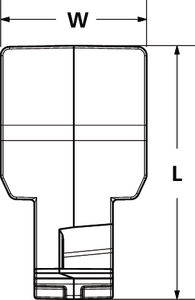

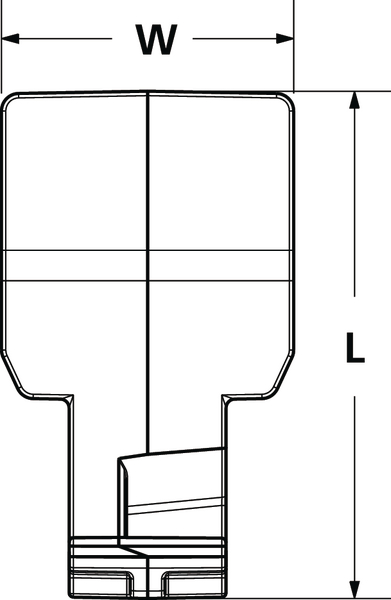

Product Dimensions

Height (H)	21.7mm
Height (H2)	15.5mm
Hole Depth	14.0mm
Length (L)	29.1mm
Length (L2)	7.6mm
Width (W)	16.75mm
Width (W2)	9.3mm
for Hole ⌀ (FH)	7.6 - 8.4 mm
for Panel Thickness min - max	14

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +90 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026754741
Packaging 1 - Qty	2500
Packaging 1 - Type	bag
Packaging 1 - Weight (kg)	4.19kg
Packaging 3 - Height (m)	0.219075m
Packaging 3 - Length (m)	0.6064m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0529m³
Packaging 3 - Width (m)	0.3984625m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
