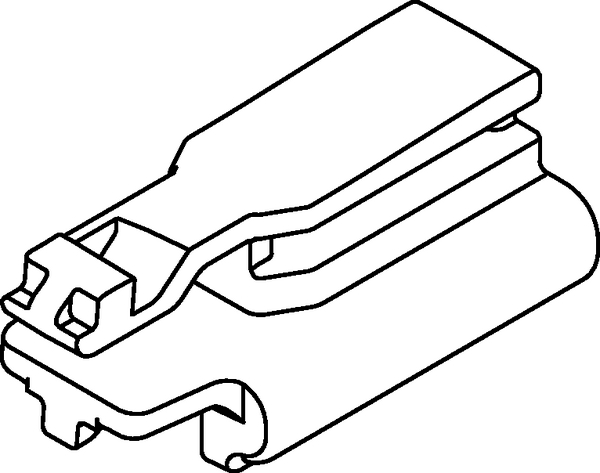

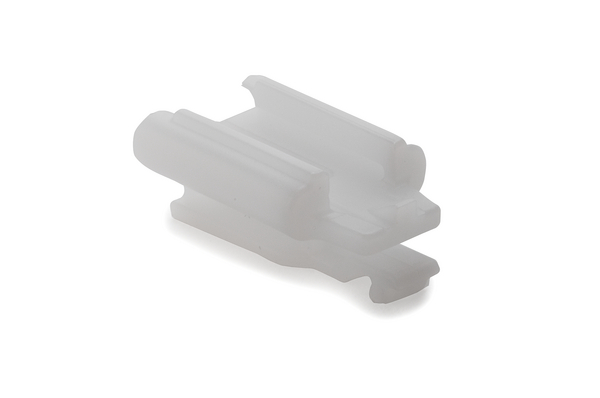

Connector clip for connector, EWCAP-005-11, natural, 8000pcs.
Art.-Nr. 151-02857 | Bosch11mmCCadpt-POM-NA |

Copied

    • Easy to install by simply pushing into place
    • Connection can be released (non-destructive)
    • One fit tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dust and dirt gaining access
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Natural (NA)
    Material Polyacetal (POM)
    PART DESCRIPTION Bosch11mmCCadpt-POM-NA
    Package Content 8000pcs.
    Package Content packed in carton
    Type Bosch11mmCCadpt
    Height (H) 10.3mm
    Length (L) 25.8mm
    Width (W) 14.2mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +90 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026776613
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.1397m
    Packaging 3 - Length (m) 0.51276m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0223m³
    Packaging 3 - Weight (kg) 9.77kg
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
