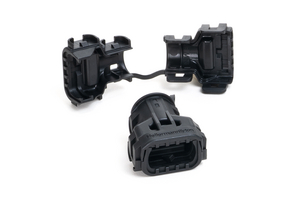

Backshell, 180°, nom⌀8.5mm, black, 1500pcs.

Art.-Nr. 151-02341

| BSA180NW8.5-PA66HS-BK

|

Fixing slider simply pushed onto the connector and hols securely on the panel.

The fixing slider is pushed onto the connector.

Backshells and Fixing slider applicated.

The fixing slider is going to be attached to the connector.

Female Connector with Backshell and convoluted tube will be attached to the panel.

Strain relief for corrugated tubes
Four shrouded locks
Strapping points fully integrated with cover for maximum retention of harness
Nominal diameter printed in backshell
Insertion support and pre-catch function audible by clicking simplify the closing, laying of the cables and saves time
Corrugated tube is completely enclosed by backshell, so that tube is not bruised in case of using an additional cable tie and cannot slip out of place especially during movement and vibration
Available in V0-material (flame retardent) especially for vehicles used for transportation of passengers

Add to watchlist

Request quote

Downloads

More products in this product group:

Connector Accessory
Backshells, Group A

Base Data

Application	The backshells or covers protecting the individual cables and wires from splashing water and dirt.
Colour	Black (BK)
Key product features	for convoluted tubes or with rib
Material	Polyamide 6.6, heat stabilised (PA66HS)
PART DESCRIPTION	BSA180NW8.5-PA66HS-BK
Package Content	1500pcs.
Package Content packed in	box
Product Family	Backshell A, straight, NW 8.5 CTCS-series
Product Group	Connector Accessory Backshells, Group A
Short Description	backshells or covers protecting 180°, nom⌀8.5mm
Type	BSA180NW8.5
Weight/Unit	0.004756kg

Product Dimensions

Angle	180
Height (H)	18.05mm
Length (L)	28.85mm
Nominal ⌀	8.5mm
Width (W)	28.1mm

Specifications

ELV compliant (Article 4 - 2)	Yes
Hazardous Goods	No
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	PL
Customs Number	39269097
GTIN-13 / EAN	4031026606309
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.204m
Packaging 3 - Length (m)	0.591m
Packaging 3 - Qty	1500
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.048m³
Packaging 3 - Weight (kg)	8.1kg
Packaging 3 - Width (m)	0.398m
Packaging 4 - Height (m)	1.204m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	30000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.156m³
Packaging 4 - Weight (kg)	184.0kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
