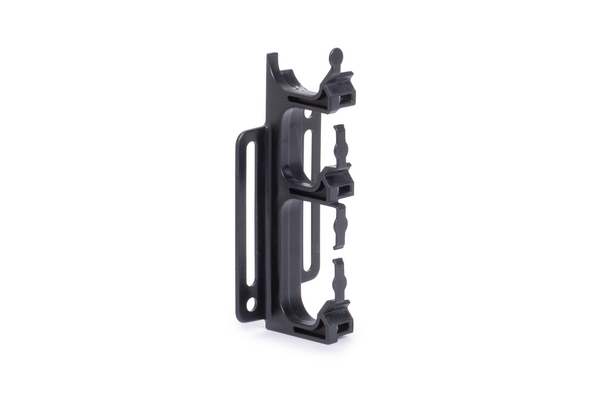

CBLSTK3CZS-PA66HIRHSUV-BK

Art.-Nr. 151-04218

| CBLSTK3CZS-PA66HIRHSUV-BK

|

Add to watchlist

Request quote

Downloads

Base Data

Colour	Black (BK)
Fixation Method	Screw Mounting and Rivet
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Mounting Screw Type	#10 Screw, M6 Screw
PART DESCRIPTION	CBLSTK3CZS-PA66HIRHSUV-BK
Package Content	10pcs.
Package Content packed in	pack
Type	CBLSTK3CZS
UV-Stabilised	Yes

Product Dimensions

Height (H)	106.9mm
Length (L)	43.0mm
Width (W)	36.0mm
for Hole ⌀ (FH)	6.6 mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +110 °C
Operating Temperature, 1000h	+160 °C
Operating Temperature, 5000h	+125 °C
Operating Temperature, 500h	+165 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	US
GTIN-13 / EAN	4031026741383
Packaging 1 - Qty	10
Packaging 1 - Type	pack

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121717

Solutions

Cable holder

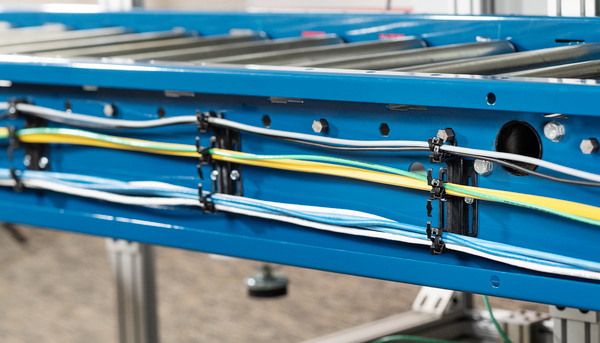

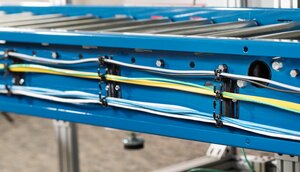

Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
