Connector clip, black, 1500pcs.
Art.-Nr. 151-02797 | CC6SFT7x12-PA66HIRHS-BK |

Copied

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)

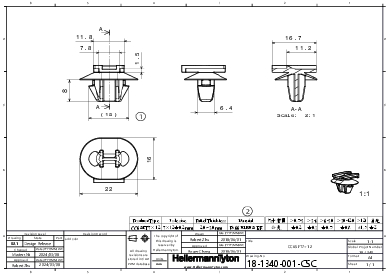

    PART DESCRIPTION CC6SFT7x12-PA66HIRHS-BK
    Pack Cont. 1500pcs.
    Package Content packed in bag
    Type CC6SFT7x12
    Height (H) 14.0mm
    Length (L) 22.0mm
    Panel Thickness max. 2.0-3.0mm
    Width (W) 16.7mm
    for Hole ⌀ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 2 - 3 mm
    Country of Origin CN
    GTIN-13 / EAN 4031026618517
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
