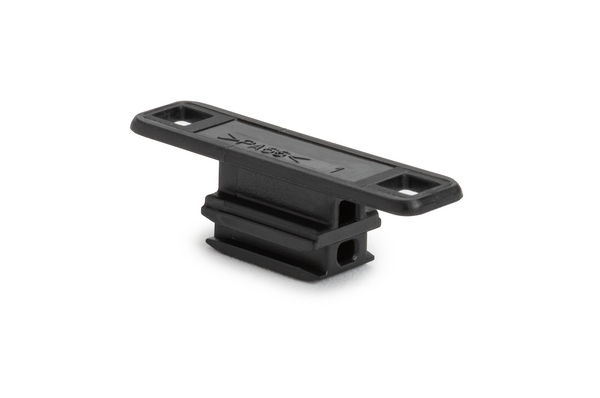

Connector clip, black, 900Carton

Art.-Nr. 133-02791

| CC8.5ADPT-PA66HIRHS-BK

|

Easy to install by simply pushing into place
Connection can be released (non-destructive)
One fit tree foot part can be used for a variety of panel thicknesses
Disc covers the hole to prevent dust and dirt gaining access

Add to watchlist

Request quote

Downloads

Base Data

Application	The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour	Black (BK)
Fixation Method	Connector Clip
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	CC8.5ADPT-PA66HIRHS-BK
Package Content	900Carton
Package Content packed in	carton
Type	CC8.5ADPT

Product Dimensions

Height (H)	9.02mm
Length (L)	30.25mm
Width (W)	7.62mm
for Hole ⌀ (FH)	3.5 mm

Specifications

CE Certification	No
CSA Certified	No
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026580623
Packaging 3 - Height (m)	0.1730375m
Packaging 3 - Length (m)	0.57785m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0349m³
Packaging 3 - Width (m)	0.34925m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
