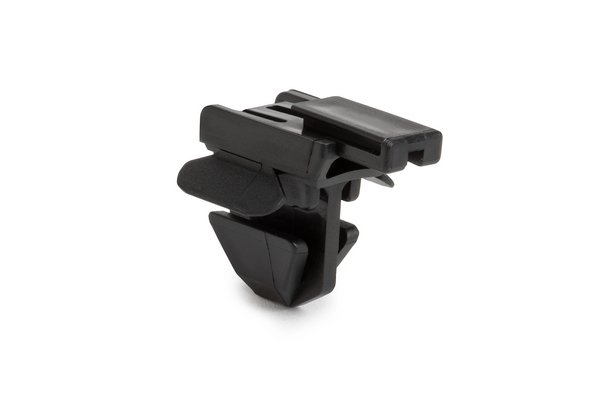

Connector clip, black, 2500Carton
Art.-Nr. 133-02773 | CCAH8.5X16PT4-5-PP-BK |

Copied

    • Easy to install by simply pushing into place
    • Connection can be released (non-destructive)
    • One fit tree foot part can be used for a variety of panel thicknesses
    • Disc covers the hole to prevent dust and dirt gaining access
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Black (BK)
    Fixation Method arrowhead
    Material Polypropylene (PP)
    PART DESCRIPTION CCAH8.5X16PT4-5-PP-BK
    Package Content 2500Carton
    Package Content packed in carton
    Type CCAH8.5X16PT4-5
    UV-Stabilised Yes
    Height (H) 21.65mm
    Length (L) 27.07mm
    Panel Thickness max. 4.0 - 5.0mm
    Width (W) 21.36mm
    for Hole ⌀ (FH) 8.5 - 16.0 mm
    for Panel Thickness min - max 4 - 5 mm
    CE Certification No
    CSA Certified No
    Hazardous Goods No
    Operating Temperature -40 °C to +115 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026580371
    Packaging 3 - Height (m) 0.1730375m
    Packaging 3 - Length (m) 0.57785m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0349m³
    Packaging 3 - Width (m) 0.34925m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
