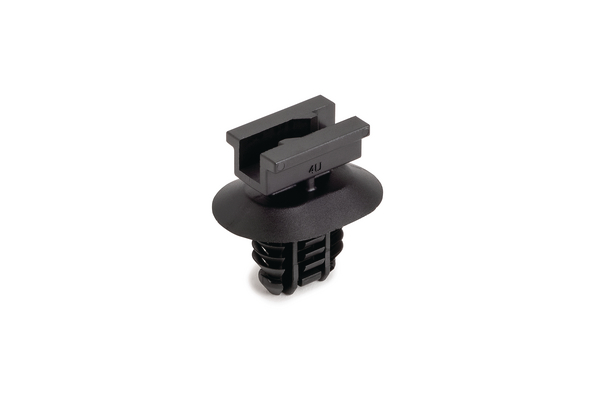

Connector clip, black, 4500pcs.
Art.-Nr. 151-03318
| CCAMPFTOVAL-PA66HIRHSUV-BK
|
Copied
- Connector clips provide a single method to mount connectors to various surfaces in a variety of applications.
- Highly engineered designs feature anti-rattle discs, anti-rotation oval fir trees and clamps for mounting on edges.
- A wide assortment of styles is available to fit the variety of connector slot designs made by most of the largest global connector manufacturers.
Request quote
| Application | The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement |
| Colour | Black (BK) |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | CCAMPFTOVAL-PA66HIRHSUV-BK |
| Package Content | 4500pcs. |
| Package Content packed in | carton |
| Type | CCAMPFTOVAL |
| UV-Stabilised | Yes |
| Weight/Unit | 0.01kg |
| CE Certification | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Recognized (US) | No |
| Country of Origin | US |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026651071 |
| Packaging 1 - Type | bag |
| Packaging 3 - Height (m) | 0.219075m |
| Packaging 3 - Length (m) | 0.6064m |
| Packaging 3 - Qty | 4500 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0529m³ |
| Packaging 3 - Weight (kg) | 45.5kg |
| Packaging 3 - Width (m) | 0.3984625m |
