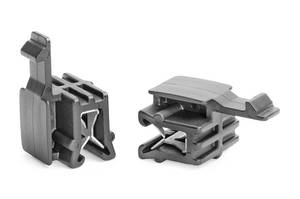

Connector clip for edge, black, 500pcs.
Art.-Nr. 151-01471 | CCEC6-PA66HIRHS-BK

Copied
  • Simply push per hand onto a plastic edge
  • Connector easily installed by simply pushing into place
  • Connection can be released (non-destructive)
  • Integrated metal clamp holds clip firmly in place
  • Clamp consists of double tempered spring steel
  • Ideal for applications where holes or adhesives are not suitable
Package size

Request your individual offer now

Application Connector clip for edges, for fastening cables and wires in places where screwing or adhering is not possible.
Colour Black (BK)
Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION CCEC6-PA66HIRHS-BK
Pack Cont. 500pcs.
Package Content packed in bag
Product Family 1 - 3 mm, 1.5 - 4 mm and 3 - 6 mm
Product Group Connector Clips for Edges
Type CCEC6
Height (H) 15.0mm
Length (L) 24.0mm
Width (W) 10.4mm
for Panel Thickness min - max 1 - 3 mm
ROHS compliant Yes
Specifications
Country of Origin CN
GTIN-13 / EAN 4031026542393
ETIM 7.0 Key EC000449
ETIM 8.0 Key EC000449
ETIM 9.0 Key EC000449
UNSPSC Key 31162305
