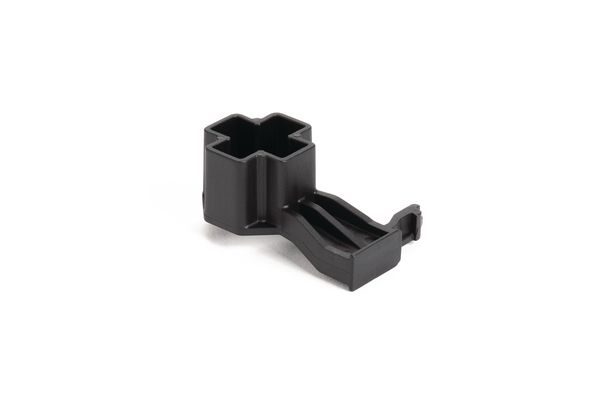

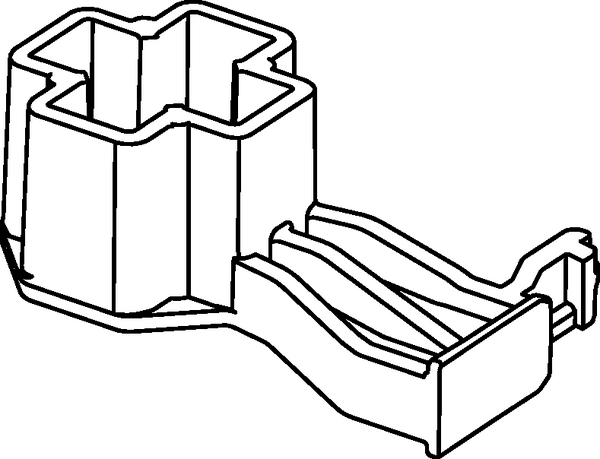

Connector clip, EWCAP-005-7, black, 2000pcs.

Art.-Nr. 151-02802

| CCM10SO28R-PA66HIRHSUV-BK

|

Easy to install by simply pushing into place
Connection can be released (non-destructive)
One fit tree foot part can be used for a variety of panel thicknesses
Disc covers the hole to prevent dust and dirt gaining access

Add to watchlist

Request quote

Downloads

Base Data

Application	The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
Colour	Black (BK)
Fixation Method	Stud Mount
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	CCM10SO28R-PA66HIRHSUV-BK
Package Content	2000pcs.
Package Content packed in	pack
Type	CCM10SO28R
UV-Stabilised	Yes
Variant	M10 Threaded Stud 28 mm Offset

Product Dimensions

Height (H)	18.7mm
Length (L)	38.9mm
Offset Length	28.0mm
Stud ⌀	0.3937"
Stud ⌀	M10

Specifications

CE Certification	No
CSA Certified	No
Operating Temperature	-40 °C to +105 °C
Operating Temperature, 1000h	+160 °C
Operating Temperature, 5000h	+125 °C
Operating Temperature, 500h	+165 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging


Country of Origin	US
GTIN-13 / EAN	4031026725796
Packaging 1 - Qty	2000
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.20955m
Packaging 3 - Length (m)	0.5175m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0344m³
Packaging 3 - Weight (kg)	7.47kg
Packaging 3 - Width (m)	0.3175m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162305
