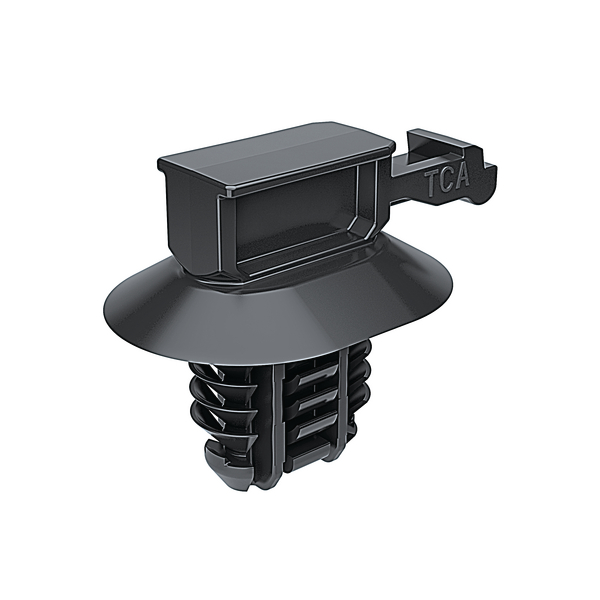

Connector clip for hole (oval), black, 5000pcs.
Art.-Nr. 151-03492 | CCOVAL2-PA66HIRHSUV-BK |

Copied

    • Connector easily installed by simply pushing into place
    • Connection can be released non-destructive
    • Easy assembly, just shuffle manually
    • Oval connectors offer twist protection
    • Available for a wide variety of panel thicknesses
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Connector Clips feature various attachment point configurations to accommodate the many connectors on the market. They are first mated with a connector on a wire harness or cable assembly, then secured to a surface using the integrated mount. With so many configurations available, attachment surfaces can be a hole, edge, stud or even another harness assembly.
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION CCOVAL2-PA66HIRHSUV-BK
    Package Content 5000pcs.
    Package Content packed in bag
    Product Family With FirTree
    Product Group Connector Clips for Oval Holes
    Type CCOVAL2
    UV-Stabilised Yes
    Length (L) 29.0mm
    Panel Thickness 0.6 - 6.0mm
    Width (W) 17.6mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm
    for Panel Thickness min - max 0.6 - 6 mm
    Country of Origin CN
    GTIN-13 / EAN 4031026672052
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
