30/10/2025

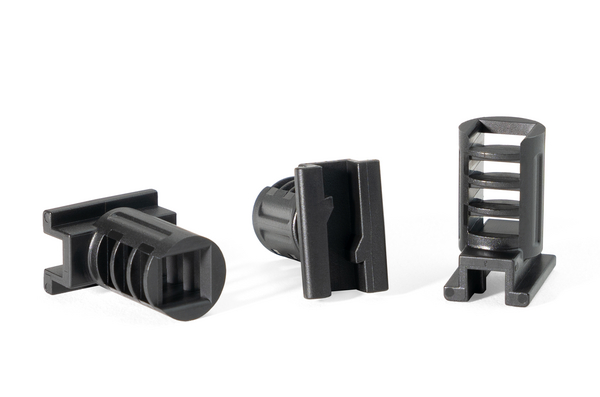

Connector clip, black, 2000pcs.
Art.-Nr. 151-03595 | CCPLDSBS6-PA66HIRHS-BK |

Copied
Connector clip with passive locking device for 6 mm weld studs.

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Soft-push design for tool free installation
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Connector clips used here have been designed for electronic cables and cable sets used in the automotive industry. The Connector Clips are related to a Connector and then secured to a surface depending on the requirement.
    Colour Black (BK)
    Fixation Method Stud Mount
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CCPLDSBS6-PA66HIRHS-BK
    Package Content 2000pcs.
    Package Content packed in bag
    Product Family Soft-push design
    Product Group Connector clips for weld studs
    Short Description ConnectorClip for Passive Locking Devices, for application on top of a 6 mm stud.
    Type CCPLDSBS6
    Type of connection AMP
    Weight/Unit 0.001026kg

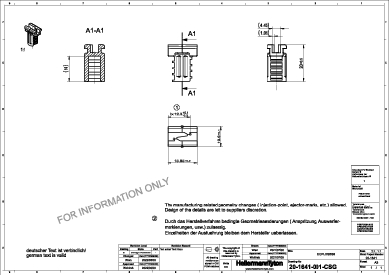

    Height (H) 20.0mm
    Length (L) 15.95mm
    Max Stud Length 14.0mm
    Stud ⌀ T6
    Width (W) 10.6mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026677064
    Packaging 1 - Height (m) 0.06m
    Packaging 1 - Length (m) 0.395m
    Packaging 1 - Qty 2000
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.010665m³
    Packaging 1 - Weight (kg) 2.081135kg
    Packaging 1 - Width (m) 0.45m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 10000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 11.367675kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.204m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 200000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.156m³
    Packaging 4 - Weight (kg) 248.34kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
