CDC30S40.5M8-PA66HIRHS-BK
Art.-Nr. 133-04239 | CDC30S40.5M8-PA66HIRHS-BK

Copied

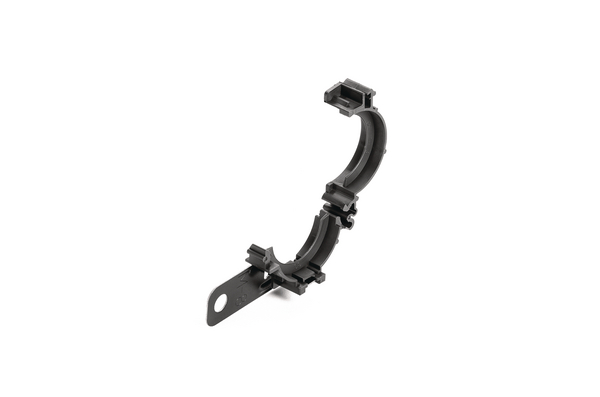

Conduit clamp is releasable to allow for maintenance.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method screwable
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    Mounting Screw Type M8 Screw
    PART DESCRIPTION CDC30S40.5M8-PA66HIRHS-BK
    Package Content 500pcs.
    Package Content packed in carton
    Type CDC30S40.5M8
    ⌀ (D2) 40.8mm
    ⌀ D 1.29"
    ⌀ D2 1.61"
    Attach to ⌀ 30
    Bundle ⌀ 30.0mm
    Bundle ⌀ max. 30.0mm
    Diameter (D) 32.8mm
    Height (H) 93.8mm
    Length (L) 102.6mm
    Offset Length 40.5mm
    Stud ⌀ M8
    Width (W) 22mm
    for Hole ⌀ (FH) 8.8 mm
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free No
    Hazardous Goods No
    Operating Temperature -40 °C to +110 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026634739
    Packaging 3 - Height (m) 0.352424999999999m
    Packaging 3 - Length (m) 0.5715m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0703m³
    Packaging 3 - Width (m) 0.34925m
    UNSPSC Key 31162305
