30/10/2025

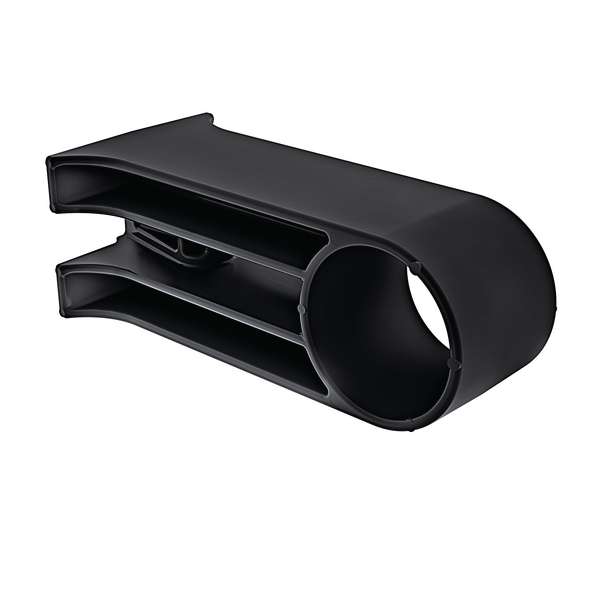

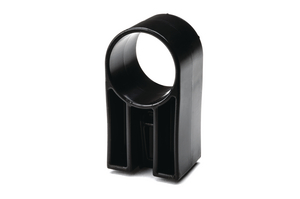

Corrugated tube clip, black, 150pcs.
Art.-Nr. 133-00285 | CGS2-PA66HIRHS-BK |

Copied
The cable guide standoff stands off bundles from frame rails, providing clearance from bolts and other protrusions for protection against abrasion.
This product perfectly secures convoluted tubing’s up to 26mm in diameter.
The cable guide standoff stands off bundles from frame rails, providing clearance from bolts and other protrusions for protection against abrasion.
Cable Guide Standoff
The cable guide standoff stands off bundles from frame rails, providing clearance from bolts and other protrusions for protection against abrasion.
Cable Guide Standoff

    • Tubes are fixed a defined distance from the substructure
    • Defined diameter for the wire entry
    • Retainer is fixed in the hole with BHT-tie
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application This heavy duty fixing element can be used to guide tubes in a defined distance to the substructure.
    Colour Black (BK)
    Key product features for convoluted tubes or with rib
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION CGS2-PA66HIRHS-BK
    Package Content 150pcs.
    Package Content packed in pack
    Product Family CGS1 for Convoluted Tubes
    Product Group Fixing Elements for BHT-Ties, for Distance Routing
    Type CGS2
    UV-Stabilised No
    Variant Mounts
    Weight/Unit 0.023kg
    Bundle ⌀ 25.9mm
    Bundle ⌀ max. 25.9mm
    Length (L) 82.04mm
    Width (W) 38.1mm
    for Hole ⌀ (FH) 12.7 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    Customs Number 39269097
    GTIN-13 / EAN 4031026702025
    Packaging 1 - Height (m) 0.032m
    Packaging 1 - Length (m) 0.083m
    Packaging 1 - Qty 150
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.000077024m³
    Packaging 1 - Weight (kg) 0.023kg
    Packaging 1 - Width (m) 0.029m
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Qty 150
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Weight (kg) 4.07kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Height (m) 1.209m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 3000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.161m³
    Packaging 4 - Weight (kg) 102.4kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 39121717
    Self-Adhesive cable tie mounts Self-Adhesive cable tie mounts

    Self-Adhesive cable tie mounts

    HellermannTyton self-adhesive cable tie mounts are perfectly suited for cable fastening on round and angled surfaces. To save time, reduce part diversity and weight.

    Cable tie mounts >
