Ratchet O-Clamp

Art.-Nr. 151-04439

| DROC18.5-22.5FT9X17-PA66HIRHSUV-BK

|

Add to watchlist

Request quote

Downloads

More products in this product group:

Ratchet O-Clamp

Base Data

Colour	Black (BK)
Fixation Method	Fir Tree
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
Min.Tensile Strength	445N
PART DESCRIPTION	DROC18.5-22.5FT9X17-PA66HIRHSUV-BK
Package Content	400
Package Content packed in	pack
Product Group	Ratchet O-Clamp
Type	DROC18.5-22.5FT9X17
UV-Stabilised	Yes
Weight/Unit	0.01518kg

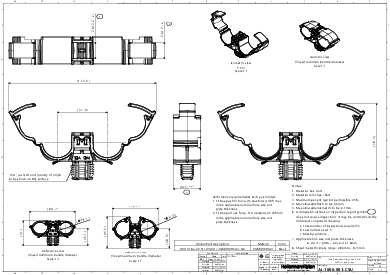

Product Dimensions

Bundle ⌀	18.5-22.5mm
Bundle ⌀ max.	22.5mm
Bundle ⌀ min.	18.5mm
Height (H)	58.5mm
Length (L)	112.2mm
Panel Thickness	0.6 - 6.75mm
Width (W)	20.5mm
for Hole ⌀ (FH)	9.0 x 17.0 mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Reusable (Yes/No)	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026759678
Packaging 1 - Qty	400
Packaging 1 - Weight (kg)	6.0736018kg
Packaging 3 - Height (m)	0.209549999999999m
Packaging 3 - Length (m)	0.606425m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0504m³
Packaging 3 - Width (m)	0.39688m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	31162306
