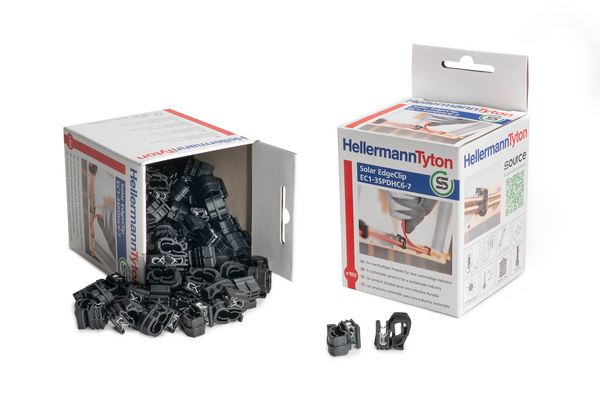

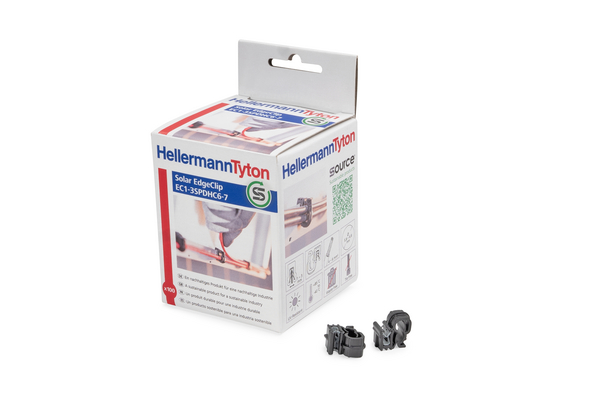

Cable clip for edge, T=1.0 - 3.0mm, nom⌀=5.8 - 6.8 mm
Art.-Nr. 151-04387
| EC1-3SPDHC6-7-PA11/C75S-BK
|
Copied
- for one or two solar cables
- made of sustainable PA11 material
- long-lasting product
- secure hold of the cables
- simple change of cables in case of maintenance
- for edges 1.0 - 3.0 mm
Request your individual offer now
Request quote
More products in this product group:
| Application | Our EC1-3SPDHC6-7 will help you lay solar cables. You can easily attach this article to your solar modules in order to guide up to two cables into the holder by simply pressing them in. |
| Cable ⌀ max | 6.8mm |
| Cable ⌀ min | 5.8mm |
| Colour | Black (BK) |
| Fixation Method | EdgeClip, sideway |
| Key product features | for multiple routing, for direct fixation, for faster processing |
| Material | Polyamide 11 (PA11), Steel C75S (C75S) |
| PART DESCRIPTION | EC1-3SPDHC6-7-PA11/C75S-BK |
| Package Content | 100pcs. |
| Package Content packed in | box |
| Product Family | EdgeClip series for solar panels |
| Product Group | Fixing element for solar cables |
| Short Description | EdgeClip for edges 1.0 - 3.0 mm, for parallel routing for up to two solar cables. |
| Type | EC1-3SPDHC6-7 |
| UV-Stabilised | Yes |
| UV-Stabilised Reference | Raw Material based |
| Weight/Unit | 0.00262kg |
Download
| ELV compliant (Article 4 - 2) | YES |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +85 °C |
| PFAS-free | No - alternative under development |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |
|
|
|
Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability. EarthSource denotes HellermannTyton products made from polymers derived from abundant renewable plant-based sources or from the ground underneath. Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. |
|
|
|
| Country of Origin | PL |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026756691 |
| Packaging 1 - Height (m) | 0.11m |
| Packaging 1 - Length (m) | 0.09m |
| Packaging 1 - Qty | 100 |
| Packaging 1 - Type | carton |
| Packaging 1 - Volume (m³) | 0.000891m³ |
| Packaging 1 - Weight (kg) | 0.3kg |
| Packaging 1 - Width (m) | 0.09m |
| Packaging 3 - Height (m) | 0.204m |
| Packaging 3 - Length (m) | 0.591m |
| Packaging 3 - Qty | 2400 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.048m³ |
| Packaging 3 - Weight (kg) | 8.162kg |
| Packaging 3 - Width (m) | 0.398m |
| Packaging 4 - Height (m) | 1.204m |
| Packaging 4 - Length (m) | 1.2m |
| Packaging 4 - Qty | 48000 |
| Packaging 4 - Type | pallet |
| Packaging 4 - Volume (m³) | 1.156m³ |
| Packaging 4 - Weight (kg) | 184.24kg |
| Packaging 4 - Width (m) | 0.8m |
