Edge Clip to LOC Locking Clamp, 15-19mm Clamp, 1-3mm Panel, PA66HIRHSUV/PA66HIRHSUVR5, Blk, 1000/Ctn

Art.-Nr. 156-02872

| ECF90LOC15-19-PA66HIRHSUVR5/PA66HIRHSUV-BK

|

Add to watchlist

Request quote

Downloads

Base Data

Colour	Black (BK)
Fixation Method	Edge Clip
Key product features	rotatable
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised, proprietary blend (PA66HIRHSUVR5), Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	ECF90LOC15-19-PA66HIRHSUVR5/PA66HIRHSUV-BK
Package Content	1000pcs.
Package Content packed in	bag
Short Description	Edge Clip to LOC Locking Clamp, 15-19mm Clamp, 1-3mm Panel, PA66HIRHSUV/PA66HIRHSUVR5, Blk, 1000/Ctn
Type	ECF90LOC15-19
UV-Stabilised	Yes
Weight/Unit	0.01kg

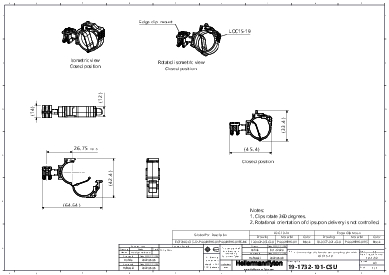

Product Dimensions

Bundle ⌀	15.0-20.0mm
Bundle ⌀ max.	20.0mm
Bundle ⌀ min.	15.0mm
Depth (D)	14.0mm
Height (H)	64.64mm
Height (H2)	45.4mm
Length (L)	42.4mm
Panel Thickness	1.0 - 3.0mm
Width (W)	12.0mm
for Panel Thickness min - max	1 - 3 mm

Specifications

CE Certification	No
CSA Certified	No
ELV compliant (Article 4 - 2)	Yes
Flammability	UL 94 HB
Hazardous Goods	No
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
Customs Number	39269097
GTIN-13 / EAN	4031026635682
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.20955m
Packaging 3 - Length (m)	0.5175m
Packaging 3 - Qty	1000
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0344m³
Packaging 3 - Weight (kg)	10.0kg
Packaging 3 - Width (m)	0.3175m
Packaging 4 - Qty	40000
Packaging 4 - Type	pallet

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121702
