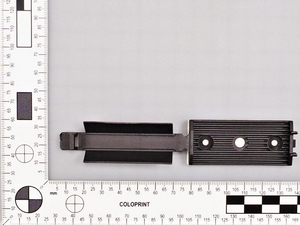

Cable clip for adhesive use, ⌀3.1 mm

Art.-Nr. 151-00307

| FKH50A-PA66HIR-BK

|

FKH50 are designed to retain flat ribbon cables.

Based on extremely soft wings any flat cable is gently fastened.

The flat ribbon cables are available in 4 different sizes.

Perfect solution to route cables along the office desk.

Fixing can be realised with M3/M5 screws or acrylic adhesive backing

One-piece fixing mount for flat ribbon and round cables
Increased mounting area ensures proper bonding
Quick and easy installation
Can be released and re-used easily
Cable is gently fastened due to soft wings

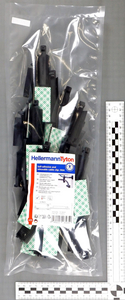

Package size

25 pcs.

100 pcs.

Add to watchlist

Request quote

Downloads

More products in this product group:

Flat ribbon and round cable mounts

Base Data

Application	FKH mounts are designed to retain flat ribbon and round cables commonly used in information technology applications, in entertainment electronics or for connecting sensors. As each installation scenario is individual, FKH mounts are available in different dimensions and can be supplied as self adhesive and/or screwable versions.
Colour	Black (BK)
Fixation Method	Pasting / Stick
Key product features	for multiple routing
Material	Polyamide 6.6, high impact modified (PA66HIR)
PART DESCRIPTION	FKH50A-PA66HIR-BK
Package Content	25pcs.
Package Content packed in	pcs.
Product Family	FKH-Series, self-adhesive
Product Group	Flat ribbon and round cable mounts
Type	FKH50A
UV-Stabilised	No
Variant	Mounting clip
Weight/Unit	0.007384kg

Product Dimensions


Attach to ⌀	50.0
For Cable Width max.	50.0mm
Length (L)	56.5mm
Width (W)	25.0mm
Width (W2)	22.0mm
for Hole ⌀ (FH)	3.1 mm

Specifications

Adhesive	Acrylate with base of polyurethane foam
Adhesive Operating Temperature	to +105 °C
ELV compliant (Article 4 - 2)	Yes
Flammability	UL 94 HB (excluding adhesive)
Hazardous Goods	No
Operating Temperature	-40 °C to +80 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging


Country of Origin	DE
Customs Number	39269097
GTIN-13 / EAN	4031026265650
Packaging 1 - Height (m)	0.04m
Packaging 1 - Length (m)	0.45m
Packaging 1 - Qty	25
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.00306m³
Packaging 1 - Weight (kg)	0.196775kg
Packaging 1 - Width (m)	0.17m
Packaging 2 - Type	carton
Packaging 3 - Height (m)	0.368m
Packaging 3 - Length (m)	0.584m
Packaging 3 - Qty	800
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.083m³
Packaging 3 - Weight (kg)	7.0432kg
Packaging 3 - Width (m)	0.386m
Packaging 4 - Height (m)	1.248m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	9600
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.198m³
Packaging 4 - Weight (kg)	105.451kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000449
ETIM 8.0 Key	EC000449
ETIM 9.0 Key	EC000449
UNSPSC Key	31162305
