29/04/2024

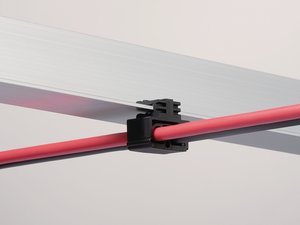

Cable clip for edge, T=3.0mm, Dmin=6.4mm, Dmax=7.1mm, black, 100pcs.
Art.-Nr. 151-02060 | GLEC1-2J-7-PA11W-BK |  Details

    • Push and click closure for fixing 1 or 2 cables.
    • Bundle diameter is from 6.4 to 7.1mm.
    • Ideal for use where holes are not acceptable.
    • Made of PA11, same as GalvaLok cable ties, GalvaLok Edge-Clip has excellent salt corrosion resistance and insulation resistance.
    Add to watchlist

    Request your individual offer now

     Request quote
    Application For wiring construction around solar panels and outdoor galvanized steel plates. Measures to prevent snow melting agents and anti-freezing agents (calcium chloride) in mountainous areas and snowy areas. To counter salt damage at coastal areas.
    Colour Black (BK)
    Material Polyamide 11, UV-resistant (PA11W)
    Pack Cont. 100pcs.
    Package Content packed in bag
    PART DESCRIPTION GLEC1-2J-7-PA11W-BK
    Product Family GalvaLok Edge-Clips
    Product Group Fixing Elements for cables with Automatic Locking Feature
    Short Description Edge Clip (1-3 mm), hose retainer, close, UV-resistant, black
    Bundle Diameter max (metric) 7.1mm
    Bundle ∅ 6.4-7.1mm
    Bundle ∅ min. 6.4mm
    for Panel Thickness min - max 1 - 3 mm
    Height (H) 15mm
    Length (L) 45.5mm
    Panel Thickness max. 3.0mm
    Weight/Unit 0.0057kg
    Width (W) 27.3mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    Specifications
    Country of Origin JP
    Customs Number 39269097
    GTIN-13 / EAN 4944387115772
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.570001kg
    Packaging 3 - Height (m) 0.345m
    Packaging 3 - Length (m) 0.455m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0494m³
    Packaging 3 - Weight (kg) 11.84002kg
    Packaging 3 - Width (m) 0.315m
    Packaging 4 - Height (m) 1.179m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 24000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.132m³
    Packaging 4 - Weight (kg) 163.08kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
