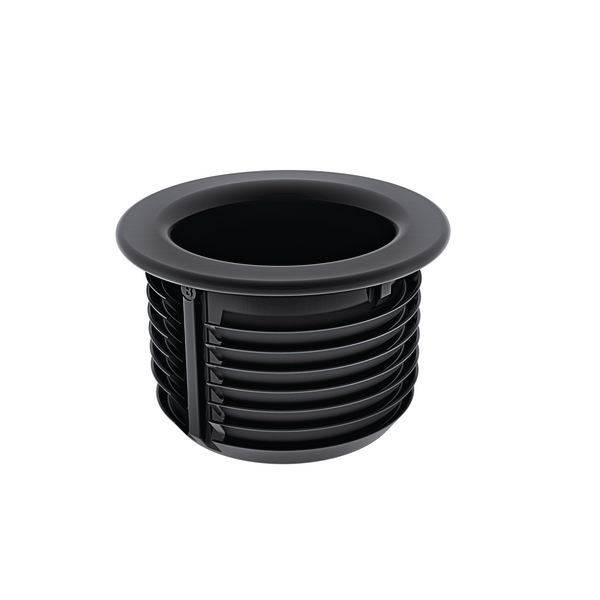

Cable grommet, ⌀27.1 mm, black, 1400pcs.

Art.-Nr. 151-00709

| GMT1-PA66HIRHSUV-BK

|

Add to watchlist

Request quote

Downloads

Base Data

Cable ⌀ max	17.53mm
Colour	Black (BK)
Fixation Method	Fir tree for round holes
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	GMT1-PA66HIRHSUV-BK
Package Content	1400pcs.
Package Content packed in	box
Type	GMT1
UV-Stabilised	Yes
Weight/Unit	0.004143kg

Product Dimensions

Height (H)	21.5mm
Width (W)	21.5mm
for Hole ⌀ (FH)	27.1 mm
for Panel Thickness min - max	3.2 - 12.7 mm

Specifications

CE Certification	No
CSA Certified	No
ELV compliant (Article 4 - 2)	Yes
Flammability	UL 94 HB
Hazardous Goods	No
Operating Temperature	-40 °C to +105 °C
Operating Temperature, 1000h	+160 °C
Operating Temperature, 5000h	+125 °C
Operating Temperature, 500h	+165 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging


Country of Origin	US
Customs Number	39269097
GTIN-13 / EAN	4031026801254
Packaging 1 - Height (m)	0.21m
Packaging 1 - Length (m)	0.5m
Packaging 1 - Qty	1400
Packaging 1 - Type	bag
Packaging 1 - Volume (m³)	0.0336m³
Packaging 1 - Weight (kg)	5.913kg
Packaging 1 - Width (m)	0.32m
Packaging 3 - Height (m)	0.20955m
Packaging 3 - Length (m)	0.5175m
Packaging 3 - Qty	1400
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0344m³
Packaging 3 - Weight (kg)	6.5232kg
Packaging 3 - Width (m)	0.3175m
Packaging 4 - Height (m)	1.194m
Packaging 4 - Length (m)	1.2m
Packaging 4 - Qty	28000
Packaging 4 - Type	pallet
Packaging 4 - Volume (m³)	1.146m³
Packaging 4 - Weight (kg)	152.464kg
Packaging 4 - Width (m)	0.8m

More Information

ETIM 7.0 Key	EC000127
ETIM 8.0 Key	EC000127
ETIM 9.0 Key	EC000127
UNSPSC Key	39121717
