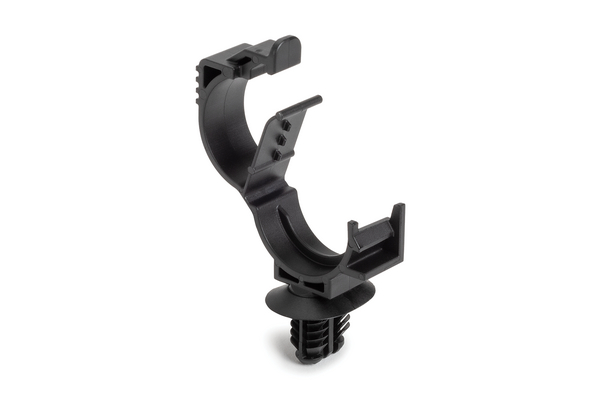

Cable clip, T=0.6 - 6.75mm, ⌀6.2 - 12.2 mm/6.5 x 12.5 mm, Dmin=15.0mm, Dmax=19.0mm, nom⌀=15.0 - 19.0 mm
Art.-Nr. 151-03389
| LOC15-19RFTOVALR-PA66HIRHSUV-BK
|
Copied
- For fixing and bundling convoluted tubes and pipes
- Suitable for nearly every application
Request quote
| Application | These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry. |
| Colour | Black (BK) |
| Fixation Method | Fir Tree |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | LOC15-19RFTOVALR-PA66HIRHSUV-BK |
| Package Content | 1000pcs. |
| Package Content packed in | carton |
| Type | LOC15-19RFTOVALR |
| UV-Stabilised | Yes |
| Bundle ⌀ | 15.0-19.0mm |
| Bundle ⌀ max. | 19.0mm |
| Bundle ⌀ min. | 15.0mm |
| Bundle Diameter Nom. (ND) | 15.0 - 19.0 mm |
| Height (H) | 63.94mm |
| Hole Depth | 0.6mm |
| Hole Depth | 6.75mm |
| Length (L) | 42.4mm |
| Panel Thickness | 0.6 - 6.75mm |
| Width (W) | 12.0mm |
| for Hole ⌀ (FH) | 6.2 - 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm, 7.0 x 12.0 mm |
| for Panel Thickness min - max | 0.6 - 6.8 mm |
| CE Certification | No |
| CSA Certified | No |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| Country of Origin | US |
| GTIN-13 / EAN | 4031026658629 |
| Packaging 1 - Type | bag |
| Packaging 3 - Height (m) | 0.219075m |
| Packaging 3 - Length (m) | 0.6064m |
| Packaging 3 - Qty | 1000 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0529m³ |
| Packaging 3 - Weight (kg) | 3.8kg |
| Packaging 3 - Width (m) | 0.3984625m |
| Packaging 4 - Qty | 30000 |
| Packaging 4 - Type | pallet |
