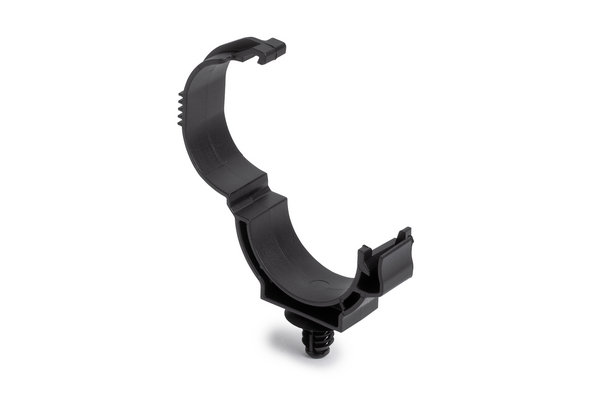

Cable clip, T=0.6 - 4.0mm, ⌀6.1 - 6.6 mm (hexagonal)/6.1 - 7.0 mm, Dmin=30.0mm, Dmax=32.0mm, nom⌀=30.0 - 32.0 mm

Art.-Nr. 151-03659

| LOC30-32FT6.5-PA66HIRHSUV-BK

|

For fixing and bundling convoluted tubes and pipes
Suitable for nearly every application

Add to watchlist

Request quote

Downloads

Base Data

Application	These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
Colour	Black (BK)
Fixation Method	Fir Tree
Material	Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
PART DESCRIPTION	LOC30-32FT6.5-PA66HIRHSUV-BK
Package Content	1000pcs.
Package Content packed in	carton
Type	LOC30-32FT6.5
UV-Stabilised	Yes

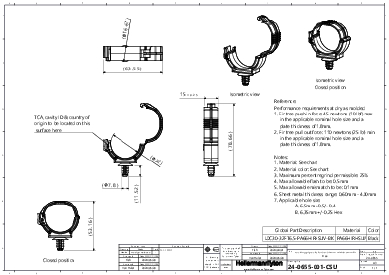

Product Dimensions

Bundle ⌀	30.0-32.0mm
Bundle ⌀ max.	32.0mm
Bundle ⌀ min.	30.0mm
Bundle Diameter Nom. (ND)	30.0 - 32.0 mm
Depth (D)	15.0mm
Height (H)	53.2mm
Length (L)	63.5mm
Panel Thickness	0.6 - 4.0mm
Width (W)	15.0mm
for Hole ⌀ (FH)	6.1 - 6.6 mm (hexagonal), 6.1 - 7.0 mm
for Panel Thickness min - max	0.6 - 4 mm

Specifications

CE Certification	No
CSA Certified	No
Flammability	UL 94 HB
Halogen-free	Yes
Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications
UL Listed (US and Canada)	No
UL Listed (US)	No
UL Recognized (US and Canada)	No
UL Recognized (US)	No

Logistics and Packaging

Country of Origin	MX
GTIN-13 / EAN	4031026754666
Packaging 1 - Type	bag
Packaging 3 - Height (m)	0.219075m
Packaging 3 - Length (m)	0.6064m
Packaging 3 - Type	box
Packaging 3 - Volume (m³)	0.0529m³
Packaging 3 - Width (m)	0.3984625m

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	39121702
