12/06/2025

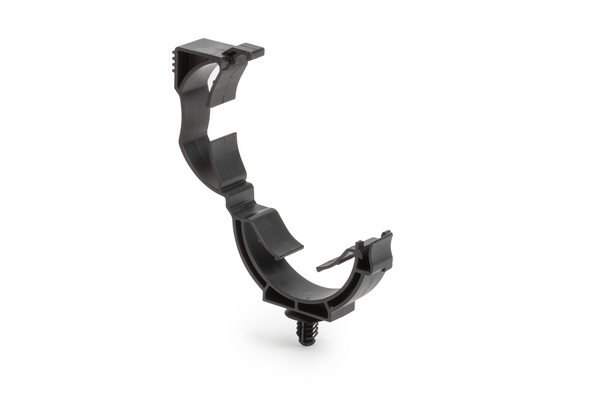

Cable clip, T=0.6 mm - 6.0mm, ⌀6.1 - 6.6 mm (hexagonal)/6.1 - 7.0 mm, Dmin=38mm, Dmax=43mm, nom⌀=38.0 - 43.0 mm
Art.-Nr. 151-03596 | LOC38-43FT6.5-PA66HIRHSUV-BK |

Copied

    • For fixing and bundling convoluted tubes and pipes
    • Suitable for nearly every application
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
    Colour Black (BK)
    Fixation Method Fir Tree
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION LOC38-43FT6.5-PA66HIRHSUV-BK
    Pack Cont. 300pcs.
    Package Content packed in carton
    Type LOC38-43FT6.5
    Bundle ⌀ 38-43mm
    Bundle ⌀ max. 43mm
    Bundle ⌀ min. 38mm
    Bundle Diameter Nom. (ND) 38.0 - 43.0 mm
    Depth (D) 15.0mm
    Height (H) 103.18mm
    Panel Thickness max. 0.6 mm - 6.0mm
    UV-Stabilised Yes
    Width (W) 88.78mm
    for Hole ⌀ (FH) 6.1 - 6.6 mm (hexagonal), 6.1 - 7.0 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026677248
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Qty 300
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Weight (kg) 3.2kg
    Packaging 3 - Width (m) 0.3175m
    Packaging 4 - Qty 12000
    ETIM 7.0 Key EC000464
    ETIM 8.0 Key EC000464
    ETIM 9.0 Key EC000464
    UNSPSC Key 39121702
