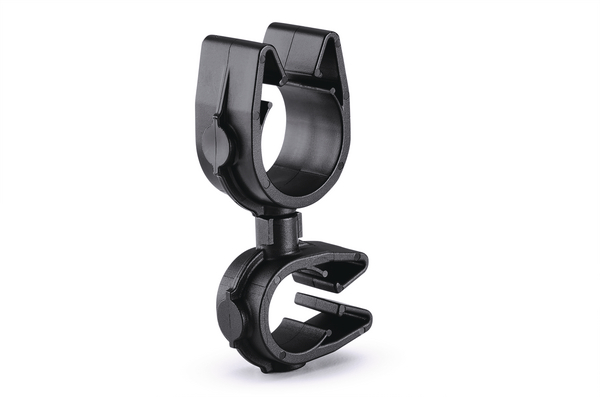

Cable clip with pipe/tube holder, Dmin=9.5mm, Dmax=11.5mm, nomØ=10.0 mm, nomØ2=16.0 mm, black, 2000
Art.-Nr. 156-02063 | MOC10FMOC16M180-PA66HIRHSUV-BK |  Details

A rotatable dual routing clip that keeps two routings secured and separated.

    Add to watchlist

    Request your individual offer now

     Request quote
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    Pack Cont. 2000
    Package Content packed in carton
    PART DESCRIPTION MOC10FMOC16M180-PA66HIRHSUV-BK
    Variant Clip to Clip Transverse
    Bundle Diameter max (metric) 11.5mm
    Bundle Diameter Nom. (ND) 10.0 mm
    Bundle Diameter Nom. 2 (ND2) 16.0 mm
    Bundle ∅ 9.5-11.5mm
    Bundle ∅ 2 max. 18.3mm
    Bundle ∅ 2 min. 14.0mm
    Bundle ∅ min. 9.5mm
    Depth (D) 12.0mm
    Height (H) 22.9mm
    Length (L) 46.92mm
    Length (L2) 24.1mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +110 °C
    Specifications
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026716770
    Packaging 1 - Weight (kg) 203.05kg
    Packaging 3 - Height (m) 0.20954999999999998m
    Packaging 3 - Length (m) 0.517525m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
