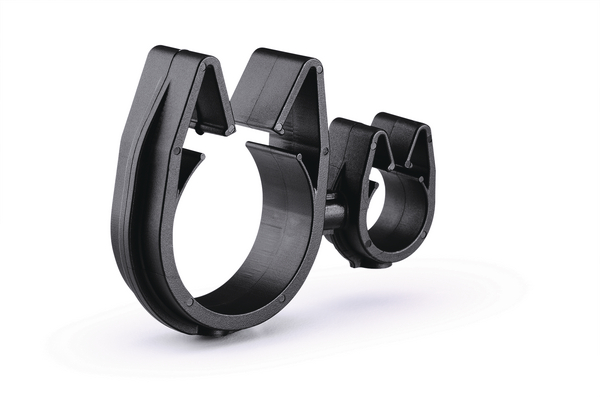

Cable clip with pipe/tube holder, Dmin=9.5mm, Dmax=11.5mm, nom⌀=10.0 mm, nom⌀2=26.0 mm
Art.-Nr. 156-02341 | MOC10FMOC26M-PA66HIRHSUV-BK |

Copied
A rotatable dual routing clip that keeps two routings secured and separated.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC10FMOC26M-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in pack
    Type MOC10FMOC26M
    Variant Clip to Clip
    Bundle ⌀ 9.5-11.5mm
    Bundle ⌀ 2 max. 29.0mm
    Bundle ⌀ 2 min. 23.0mm
    Bundle ⌀ max. 11.5mm
    Bundle ⌀ min. 9.5mm
    Bundle Diameter Nom. (ND) 10.0 mm
    Bundle Diameter Nom. 2 (ND2) 26.0 mm
    Depth (D) 12.0mm
    Height (H) 41.0mm
    Height (H2) 41.0mm
    Length (L) 55.6mm
    Length (L2) 29.7mm
    UV-Stabilised Yes
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026586106
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 205.37kg
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Qty 1000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Width (m) 0.3984625m
    Packaging 4 - Qty 30000
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
