13/06/2025

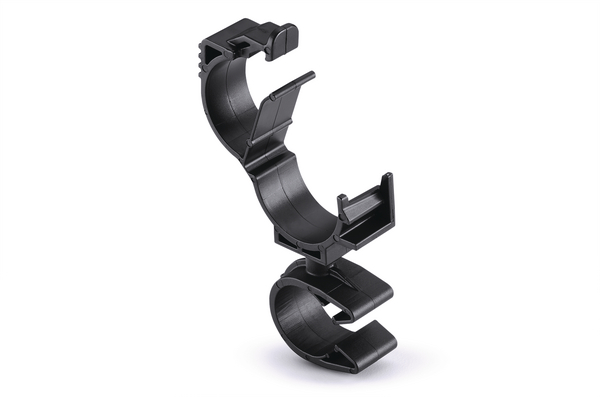

Cable clip with pipe/tube holder, Dmin=14.0mm, Dmax=18.3mm, nom⌀=16.0 mm, nom⌀2=15.0 mm - 19.0 mm
Art.-Nr. 156-01891 | MOC16FLOC15-19-PA66HIRHSUV-BK |

Copied
Independent rotation allows for adjustable routing orientation.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC16FLOC15-19-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in pack
    Type MOC16FLOC15-19
    Variant Clip to Clamp
    Bundle ⌀ 14.0-18.3mm
    Bundle ⌀ 2 max. 19.0mm
    Bundle ⌀ 2 min. 15.0mm
    Bundle ⌀ max. 18.3mm
    Bundle ⌀ min. 14.0mm
    Bundle Diameter Nom. (ND) 16.0 mm
    Bundle Diameter Nom. 2 (ND2) 15.0 mm - 19.0 mm
    Depth (D) 12.0mm
    Height (H) 33.4mm
    Height (H2) 25.7mm
    Length (L) 51.90mm
    Length (L2) 30.8mm
    UV-Stabilised Yes
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026715759
    Packaging 1 - Type carton
    Packaging 1 - Weight (kg) 205.15kg
    Packaging 3 - Height (m) 0.216m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0521m³
    Packaging 3 - Width (m) 0.396875m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121705
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
