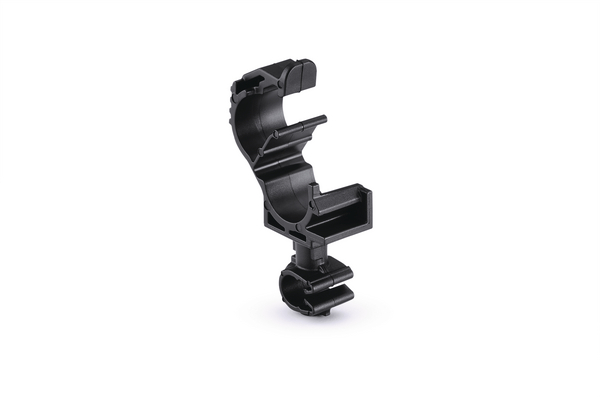

Cable clip with pipe/tube holder, Dmin=4.0mm, Dmax=5.5mm, nom⌀=5.0 mm, nom⌀2=5.0 mm - 9.0 mm
Art.-Nr. 156-01827 | MOC5FLOC5-9-PA66HIRHSUV-BK |

Copied
Independent rotation allows for adjustable routing orientation.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Key product features for multiple routing, removable
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC5FLOC5-9-PA66HIRHSUV-BK
    Package Content 2500
    Package Content packed in pack
    Type MOC5FLOC5-9
    UV-Stabilised Yes
    Variant Clip to Clamp
    Attach to ⌀ 4.0 - 5.5, 5.0 - 9.0
    Bundle ⌀ 4.0-5.5mm
    Bundle ⌀ 2 max. 9.0mm
    Bundle ⌀ 2 min. 5.0mm
    Bundle ⌀ max. 5.5mm
    Bundle ⌀ min. 4.0mm
    Bundle Diameter Nom. (ND) 5.0 mm
    Bundle Diameter Nom. 2 (ND2) 5.0 mm - 9.0 mm
    Depth (D) 12.0mm
    Height (H) 23.6mm
    Length (L) 35.10mm
    Length (L2) 20.7mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026715308
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 202.74kg
    Packaging 3 - Height (m) 0.219075m
    Packaging 3 - Length (m) 0.6064m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0529m³
    Packaging 3 - Width (m) 0.3984625m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121705
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...

    Cable holder >
    Art.-Nr.: 156-01827 Contact
