Cable clip with pipe/tube holder, Dmin=5.5mm, Dmax=6.8mm, nom⌀=6.0 mm, nom⌀2=8.0 mm
Art.-Nr. 156-02295 | MOC6FMOC8M-PA66HIRHSUV-BK |

Copied

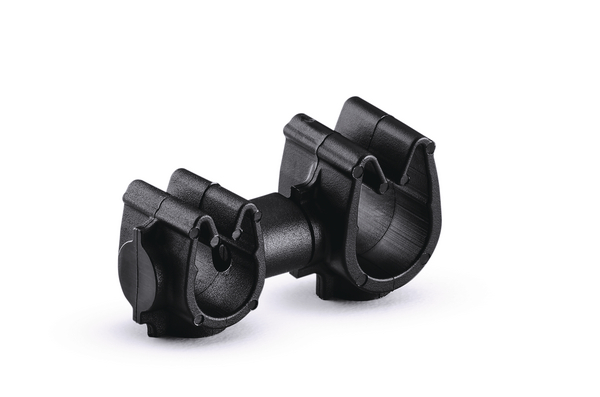

A rotatable dual routing clip that keeps two routings secured and separated.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC6FMOC8M-PA66HIRHSUV-BK
    Pack Cont. 2000
    Package Content packed in pack
    Type MOC6FMOC8M
    Variant Clip to Clip
    Bundle ⌀ 5.5-6.8mm
    Bundle ⌀ 2 max. 9.0mm
    Bundle ⌀ 2 min. 7.0mm
    Bundle ⌀ max. 6.8mm
    Bundle ⌀ min. 5.5mm
    Bundle Diameter Nom. (ND) 6.0 mm
    Bundle Diameter Nom. 2 (ND2) 8.0 mm
    Depth (D) 10.0mm
    Height (H) 15.2mm
    Length (L) 29.2mm
    Length (L2) 17.4mm
    UV-Stabilised Yes
    Weight/Unit 0.01kg
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Halogen-free Yes
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026717326
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.1397m
    Packaging 3 - Length (m) 0.51276m
    Packaging 3 - Qty 2000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0223m³
    Packaging 3 - Weight (kg) 20.0kg
    Packaging 3 - Width (m) 0.31115m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
