13/06/2025

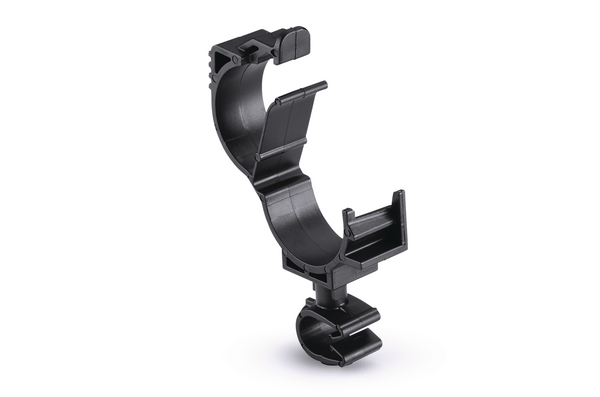

Cable clip with pipe/tube holder, Dmin=7.0mm, Dmax=9.0mm, nom⌀=8.0 mm, nom⌀2=15.0 mm - 19.0 mm
Art.-Nr. 156-01881 | MOC8FLOC15-19-PA66HIRHSUV-BK |

Copied
Independent rotation allows for adjustable routing orientation.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION MOC8FLOC15-19-PA66HIRHSUV-BK
    Pack Cont. 1000pcs.
    Package Content packed in pack
    Type MOC8FLOC15-19
    Variant Clip to Clamp
    Bundle ⌀ 7.0-9.0mm
    Bundle ⌀ 2 max. 19.0mm
    Bundle ⌀ 2 min. 15.0mm
    Bundle ⌀ max. 9.0mm
    Bundle ⌀ min. 7.0mm
    Bundle Diameter Nom. (ND) 8.0 mm
    Bundle Diameter Nom. 2 (ND2) 15.0 mm - 19.0 mm
    Depth (D) 12.0mm
    Height (H) 33.4mm
    Height (H2) 15.20mm
    Length (L) 43.30mm
    Length (L2) 26.7mm
    UV-Stabilised Yes
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026715704
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 204.01kg
    Packaging 3 - Height (m) 0.20479m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Qty 1000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0332m³
    Packaging 3 - Weight (kg) 4.4kg
    Packaging 3 - Width (m) 0.314325m
    Packaging 4 - Qty 40000
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121705
    Cable holder Cable holder

    Cable holder

    Looking for a secure way to fasten cables or wires? Our plastic cable holders are easy to install and suitable for almost any application. Learn more...
