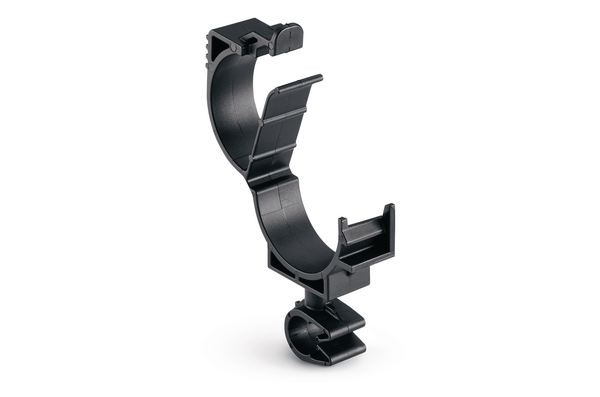

Cable clip with pipe/tube holder, Dmin=8.0mm, Dmax=10.0mm, nom⌀=9.0 mm, nom⌀2=20.0 mm - 25.0 mm
Art.-Nr. 156-01908
| MOC9FLOC20-25-PA66HIRHSUV-BK
|
Copied
Request quote
| Colour | Black (BK) |
| Key product features | removable, for multiple routing |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| No. of bundles | 2 |
| PART DESCRIPTION | MOC9FLOC20-25-PA66HIRHSUV-BK |
| Package Content | 1000pcs. |
| Package Content packed in | pack |
| Type | MOC9FLOC20-25 |
| UV-Stabilised | Yes |
| Variant | Clip to Clamp |
| Attach to ⌀ | 8.0 - 10.0, 20.0 - 25.0 |
| Bundle ⌀ | 8.0-10.0mm |
| Bundle ⌀ 2 max. | 25.0mm |
| Bundle ⌀ 2 min. | 20.0mm |
| Bundle ⌀ max. | 10.0mm |
| Bundle ⌀ min. | 8.0mm |
| Bundle Diameter Nom. (ND) | 9.0 mm |
| Bundle Diameter Nom. 2 (ND2) | 20.0 mm - 25.0 mm |
| Depth (D) | 12.0mm |
| Height (H) | 38.9mm |
| Height (H2) | 17.2mm |
| Length (L) | 53.50mm |
| Length (L2) | 30.4mm |
