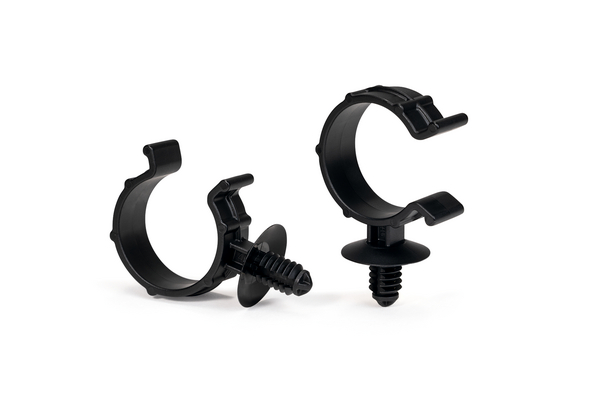

Cable clip, T=0.7-7.0mm, ⌀6.3 - 7.0 mm

Art.-Nr. 151-02815

| OC26-28FT6.5LG-PA66HIRHS-BK

|

For fixing and bundling convoluted tubes and pipes
Suitable for nearly every application

Add to watchlist

Request quote

Downloads

Base Data

Application	These clips offer fast and easy bundling of convuluted tubes and pipes, especially for the automotive industry.
Colour	Black (BK)
Fixation Method	Fir Tree
Material	Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
PART DESCRIPTION	OC26-28FT6.5LG-PA66HIRHS-BK
Package Content	2500pcs.
Package Content packed in	bag
Type	OC26-28FT6.5LG

Product Dimensions

Attach to ⌀	26.0-28.0
Height (H)	12.0mm
Length (L)	50.0mm
Panel Thickness	0.7-7.0mm
Width (W)	33.7mm
for Hole ⌀ (FH)	6.3 - 7.0 mm
for Panel Thickness min - max	0.7 - 7 mm

Specifications

Operating Temperature	-40 °C to +105 °C
ROHS compliant	Yes
Specifications

Logistics and Packaging

Country of Origin	CN
GTIN-13 / EAN	4031026619149

More Information

ETIM 7.0 Key	EC000464
ETIM 8.0 Key	EC000464
ETIM 9.0 Key	EC000464
UNSPSC Key	31162906
