21/08/2025

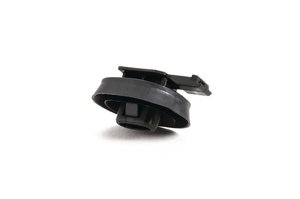

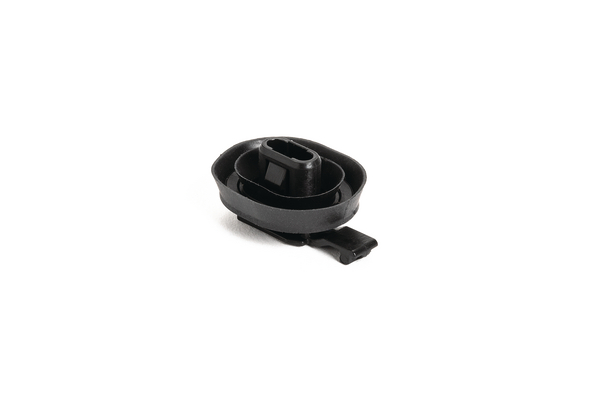

Connector clip, black, 4000pcs.
Art.-Nr. 151-02079 | SAHOVALCC-PA66HIRHSUV/TPE-BK |

Copied
Integrated dual seal meets IP65 for protection against water, dust, chemicals, air and sound.
Integrated dual seal meets IP65 for protection against water, dust, chemicals, air and sound.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method arrowhead
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION SAHOVALCC-PA66HIRHSUV/TPE-BK
    Package Content 4000pcs.
    Package Content packed in bag
    Type SAHOVALCC
    Type of connection USCAR11
    UV-Stabilised Yes
    Variant 6.2 x 12.2 mm
    6.5 x 12.5 mm
    6.5 x 13.0 mm
    Weight/Unit 0.01kg
    Height (H) 14.48mm
    Length (L) 27.28mm
    Panel Thickness max. 0.6 - 1.1mm
    Width (W) 22.78mm
    for Hole ⌀ (FH) 6.2 x 12.2 mm, 6.5 x 12.5 mm, 6.5 x 13.0 mm
    for Panel Thickness min - max 0.6 - 1.1 mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    Customs Number 39269097
    GTIN-13 / EAN 4031026742410
    Packaging 1 - Type bag
    Packaging 3 - Height (m) 0.20479m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Qty 4000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0332m³
    Packaging 3 - Weight (kg) 40.0kg
    Packaging 3 - Width (m) 0.314325m
    Packaging 4 - Qty 160000
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162305
