Ratchet O-Clamp
Art.-Nr. 151-04171 | SGDROC12-16M5M6-PA66HIRHSUV/TPE-BK |

Copied
Ratchet P-Clamps in multiple configurations to handle a wide range of diameters and applications.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method Stud Mount
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION SGDROC12-16M5M6-PA66HIRHSUV/TPE-BK
    Pack Cont. 500
    Package Content packed in box
    Product Group Ratchet O-Clamp
    Type SGDROC12-16M5M6
    Bundle ⌀ 12.0-16.0mm
    Bundle ⌀ max. 16.0mm
    Bundle ⌀ min. 12.0mm

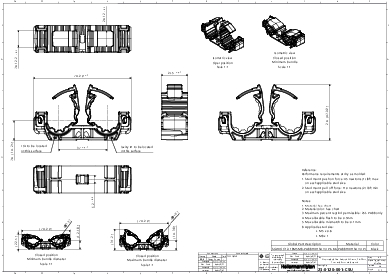

    Height (H) 42.09mm
    Height (H2) 22.5mm
    Length (L) 74.29mm
    Length (L2) 37.0mm
    Min.Tensile Strength 445N
    Stud ⌀ M5, M6
    Width (W) 20.5mm
    Width (W2) 6.2mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Halogen-free Yes
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Reusable (Yes/No) Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026739175
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121705
