SLRCN12SM38-PA66HIRHSUV-BK
Art.-Nr. 151-03828
| SLRCN12SM38-PA66HIRHSUV-BK
|
Copied

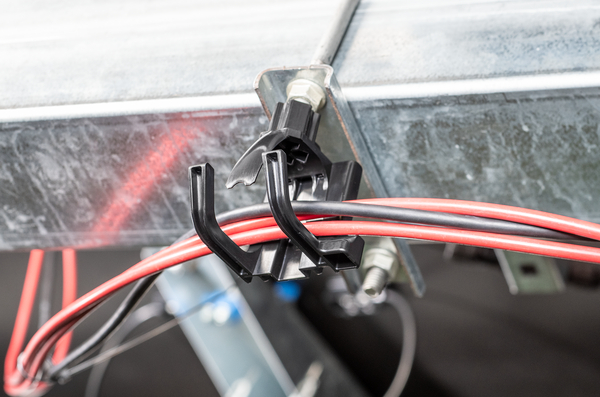

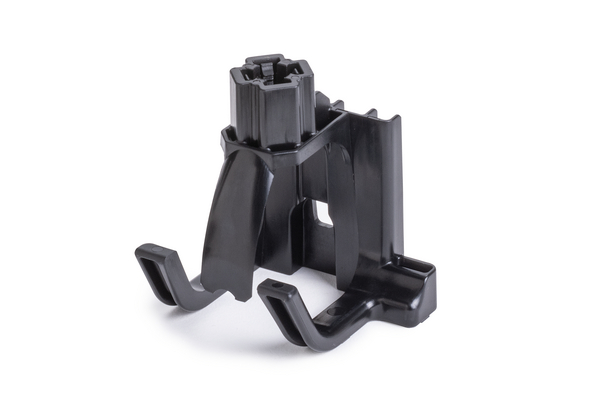

- Large, 1.5" opening supports multiple cables or tubing.

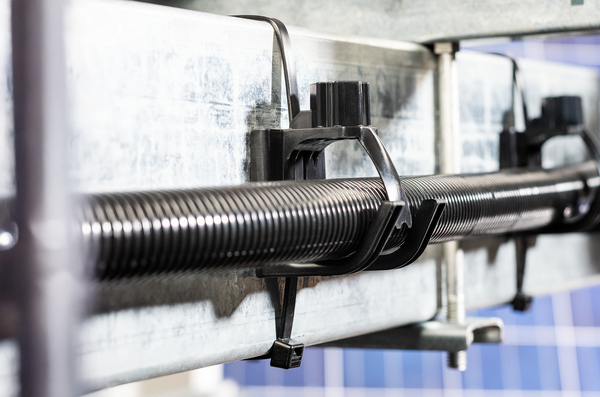

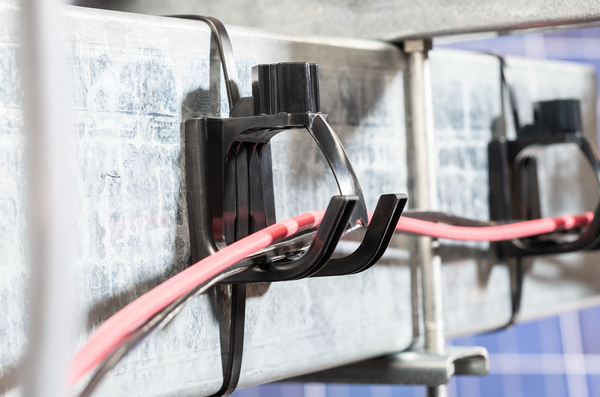

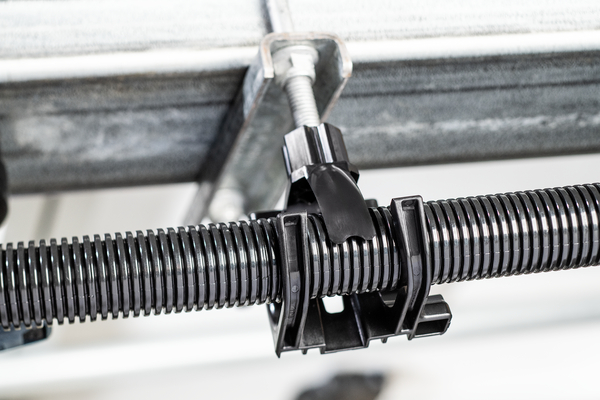

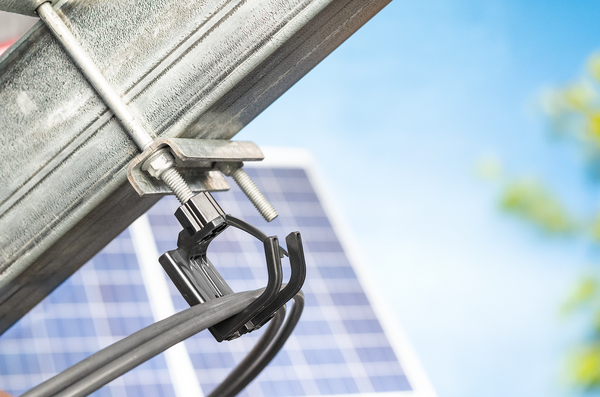

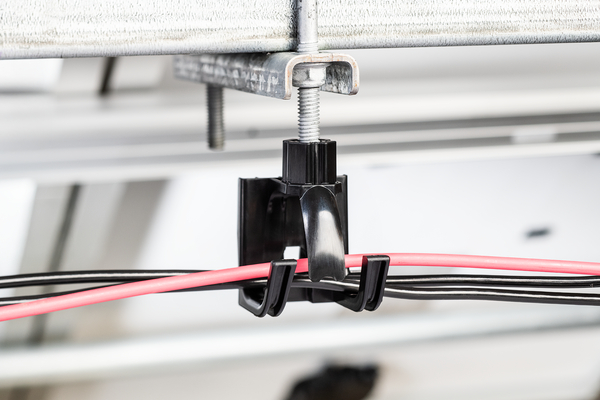

- Three mounting options – M10 stud mount, T120X or T120XLM cable tie tube mount and M5 hex head screw mount – adapt to a variety of installation scenarios.
- Unique, flexible retainer allows routings to be easily inserted, but demonstrates rigidity in opposite direction to provide 360-degree containment.

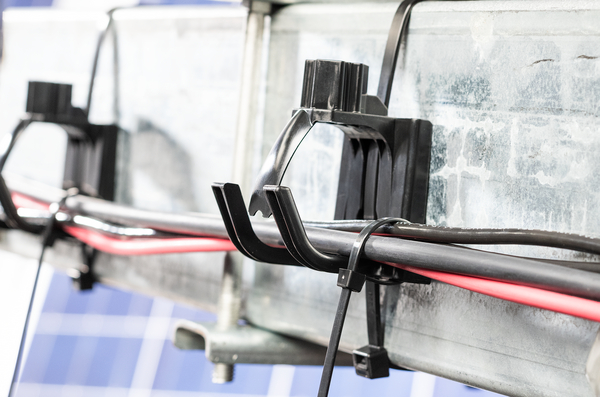

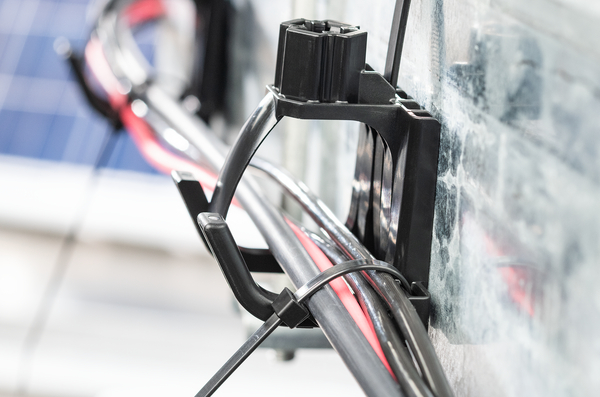

- For applications where mount will be rotated 180 degrees, the integrated support saddle accommodates a cable tie to provide additional routing security.
Request quote
| Colour | Black (BK) |
| Compatible with | Gamechange Solar |
| Conduit ⌀ | CTPUV1140 |
| Fixation Method | Screw Mount |
| For Ties |
T120X, T120XLM (cable tie anchor) T120S, T50R (cable tie saddle) |
| Material | Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV) |
| PART DESCRIPTION | SLRCN12SM38-PA66HIRHSUV-BK |
| Package Content | 200Carton |
| Package Content packed in | carton |
| Type | SLRCN12SM38 |
| UV-Stabilised | Yes |
| Weight/Unit | 0.025kg |
| CE Certification | No |
| CSA Certified | No |
| ELV compliant (Article 4 - 2) | Yes |
| Flammability | UL 94 HB |
| Halogen-free | Yes |
| Hazardous Goods | No |
| Operating Temperature | -40 °C to +105 °C |
| Operating Temperature, 1000h | +160 °C |
| Operating Temperature, 5000h | +125 °C |
| Operating Temperature, 500h | +165 °C |
| ROHS compliant | Yes |
| Reusable (Yes/No) | Yes |
| Specifications |
|
| UL Listed (US and Canada) | No |
| UL Listed (US) | No |
| UL Recognized (US and Canada) | No |
| UL Recognized (US) | No |
| Country of Origin | MX |
| Customs Number | 39269097 |
| GTIN-13 / EAN | 4031026764092 |
| Packaging 1 - Qty | 200 |
| Packaging 1 - Type | bag |
| Packaging 1 - Weight (kg) | 5.0kg |
| Packaging 3 - Height (m) | 0.219075m |
| Packaging 3 - Length (m) | 0.6064m |
| Packaging 3 - Qty | 200 |
| Packaging 3 - Type | box |
| Packaging 3 - Volume (m³) | 0.0529m³ |
| Packaging 3 - Weight (kg) | 5.0kg |
| Packaging 3 - Width (m) | 0.3984625m |
| Packaging 4 - Qty | 6000 |
