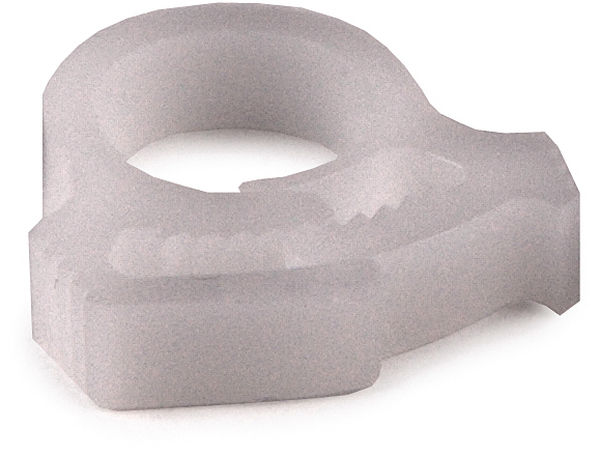

Plastic hose clamp, ⌀8.0-8.5mm, white, 100pcs.
Art.-Nr. 190-00033 | SNP1.5-POM-WH |

Copied
Completely reusable - will not rust or corrode.
SNP - Snapper Hose Clips range.
SNP Clip (side view)
SNP - Snapper Hose Clip (front view)
Designed for quick, ratcheted installation and can be released and reused.

    • Releasable and reusable plastic hose clamps
    • Self-locking
    • Releasable by giving a lateral movement to the 'head'
    • Installation by hand possible
    • Installation with processing tool for a secure tensioning
    • For higher operating temperatures: Glass Filled PA66
    Package size
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Our SNP range can be used as an alternative to metal hose clamps. Snapper can be used in markets as diverse as automotive, agriculture, white goods, venting systems, pumps and hydraulic systems to medical engineering.
    Colour White (WH)
    Fixation Method Plug-in mounting
    Material Polyacetal (POM)
    PART DESCRIPTION SNP1.5-POM-WH
    Package Content 100pcs.
    Package Content packed in pack
    Product Family SNP-Series
    Product Group Snapper hose clips for tubes and harnesses
    Type SNP1.5
    UV-Stabilised No
    Variant Closed
    ⌀ D max. 8.84mm
    ⌀ D max. 0.348"
    ⌀ D min. 7.87mm
    ⌀ D min. 0.31"
    Bundle ⌀ 8.0-8.5mm
    Bundle ⌀ max. 8.5mm
    Bundle ⌀ min. 8.0mm
    Wall (WT) .054"
    Wall (WT) 1.4mm
    Width (W) 14.91mm
    Width (W) max. 14.91mm
    Width (W) min. 10.41mm
    Width (W) min. 0.41"
    Width (W2) 3.76mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +90 °C
    ROHS compliant Yes
    Specifications
    Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.<br/>Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this. Source products are manufactured with plastics recovered from recycled waste or marine environments, derived from renewable plant-based sources, or use materials with lower equivalent emissions. HellermannTyton also offers product solutions that – by design – reduce waste or support reusability and recyclability.
    Sustainable design focuses on product solutions that reduce or avoid waste, i.e. products that can be completely or partially dismantled and repositioned, thus supporting reuse and recyclability. Longevity is not part of this.
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    GTIN-13 / EAN 4031026417080
    Packaging 1 - Qty 100
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.5kg
    Packaging 3 - Height (m) 0.216m
    Packaging 3 - Length (m) 0.60801m
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0521m³
    Packaging 3 - Width (m) 0.396875m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 31162906
