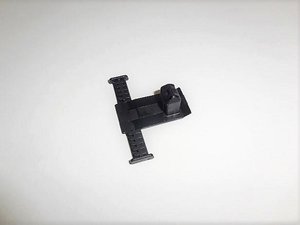

Bundling clip for hole (oval), L=42.0mm, SO=18.0mm, black, 500
Art.-Nr. 133-02635 | SOC25FT63x100-PA66HIRHS-BK |

Copied

    • Effortless, tool-free installation – can be mounted easily by hand without the need for tools
    • Flexible attachment options – compatible with both cable ties and adhesive tape
    • Oval base geometry – ensures defined cable routing and provides reliable anti-twist protection for secure positioning
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application These bundling clips are mainly used in the automotive industry, particularly for the assembly of cable harnesses. They offer a simple and user-friendly method for fastening cables, hoses and pipes.
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat stabilised (PA66HIRHS)
    PART DESCRIPTION SOC25FT63x100-PA66HIRHS-BK
    Package Content 500

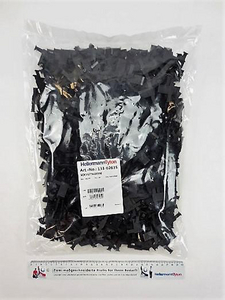

    Package Content packed in bag
    Product Family for oval holes
    Product Group Bundling clips with fir tree
    Short Description blundling clip for oval hole PA66HIRHS black
    Type SOC25FT63x100
    Weight/Unit 0.001425kg
    Bundling Bar Length 42.0mm
    Fixing Hole Shape Oval
    Length (L) 42.0mm
    Length (L2) 18.0mm
    Offset Length 18.0mm
    Panel Thickness max. 0.6-2.5mm
    for Hole ⌀ (FH) 6.3 x 10.0 mm
    for Panel Thickness min - max 0.6 - 2.5 mm
    ELV compliant (Article 4 - 2) YES
    Flammability UL 94 HB
    Hazardous Goods No
    ROHS compliant Yes
    Specifications
    Country of Origin PL
    Customs Number 39269097
    GTIN-13 / EAN 4031026575650
    Packaging 1 - Height (m) 0.15m
    Packaging 1 - Length (m) 0.3m
    Packaging 1 - Qty 500
    Packaging 1 - Type bag
    Packaging 1 - Volume (m³) 0.01845m³
    Packaging 1 - Weight (kg) 0.734315kg
    Packaging 1 - Width (m) 0.41m
    Packaging 3 - Height (m) 0.204m
    Packaging 3 - Length (m) 0.591m
    Packaging 3 - Qty 5000
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.048m³
    Packaging 3 - Weight (kg) 8.30515kg
    Packaging 3 - Width (m) 0.398m
    Packaging 4 - Height (m) 1.204m
    Packaging 4 - Length (m) 1.2m
    Packaging 4 - Qty 100000
    Packaging 4 - Type pallet
    Packaging 4 - Volume (m³) 1.156m³
    Packaging 4 - Weight (kg) 187.14kg
    Packaging 4 - Width (m) 0.8m
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
