20/08/2025

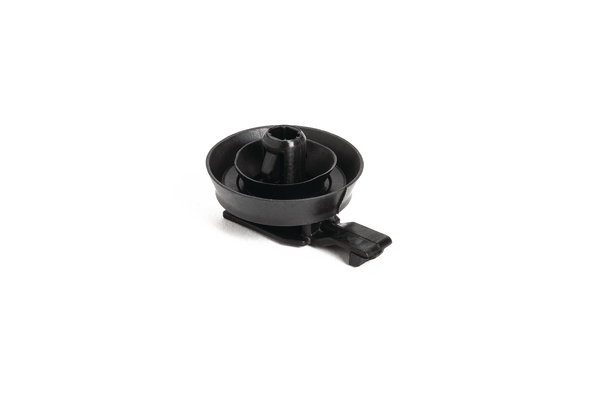

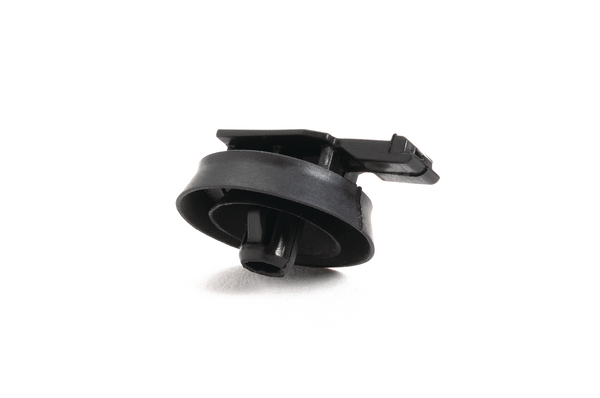

Connector clip, black, 4000pcs.
Art.-Nr. 151-02078 | SRAH6.5CC-PA66HIRHSUV/TPE-BK |

Copied
Integrated dual seal meets IP65 for protection against water, dust, chemicals, air and sound.
Integrated dual seal meets IP65 for protection against water, dust, chemicals, air and sound.

    • Fixing clip offers full 360° rotation
    • For routing of two different bundles
    • Simply clip on a wire or hose
    • Suitable for post-installation of bundles
    • Vibration resistant because of retaining collar
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Fixation Method arrowhead
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV), Thermoplastic Elastomer (TPE)
    PART DESCRIPTION SRAH6.5CC-PA66HIRHSUV/TPE-BK
    Package Content 4000pcs.
    Package Content packed in bag
    Product Family SRAHCC-Clips, rotatable 360°
    Product Group Fixing Elemnts for Tubes and Harnesses
    Type SRAH6.5CC
    Type of connection USCAR11
    UV-Stabilised Yes
    Variant 6.1 - 6.9 mm
    Height (H) 14.48mm
    Length (L) 22.3mm
    Panel Thickness max. 0.6 - 1.1mm
    Width (W) 22.3mm
    for Hole ⌀ (FH) 6.35 mm (hexagonal), 6.5 mm
    for Panel Thickness min - max 0.6 - 1.1 mm
    CE Certification No
    CSA Certified No
    Flammability UL 94 HB
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin MX
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 0.003kg
    Packaging 3 - Height (m) 0.20479m
    Packaging 3 - Length (m) 0.5159375m
    Packaging 3 - Qty 4000
    Packaging 3 - Type carton
    Packaging 3 - Volume (m³) 0.0332m³
    Packaging 3 - Weight (kg) 4.55kg
    Packaging 3 - Width (m) 0.314325m
    Packaging 4 - Qty 120000
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 31162305
