16/02/2026

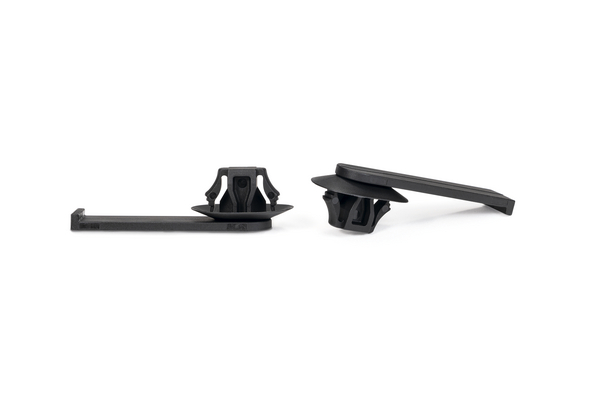

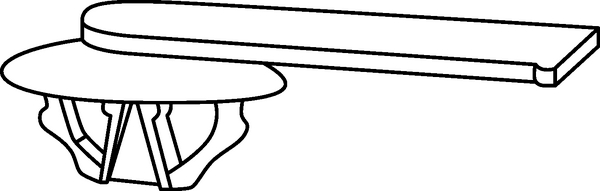

Bundling clip for hole (oval), L=34.5mm, black, 1000pcs.
Art.-Nr. 151-02794 | TCH-PM712V-PA66HS-BK |

Copied

    • Arrow head ,low push in force and high pull out force
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application Half Tape Clip to bundle harness
    Colour Black (BK)
    Fixation Method arrowhead
    Material Polyamide 6.6, heat stabilised (PA66HS)
    PART DESCRIPTION TCH-PM712V-PA66HS-BK
    Package Content 1000pcs.
    Package Content packed in bag
    Product Family Bundling Clips
    Product Group Bundling clip for oval hole
    Type TCH-PM712V
    Weight/Unit 0.00139kg
    Bundling Bar Length 34.5mm
    Fixing Hole Shape Oval
    Height (H) 12.5mm
    Length (L) 45.0mm
    Panel Thickness 0.5-2.6mm
    Width (W) 16mm
    for Hole ⌀ (FH) 7.0 x 12.0 mm
    for Panel Thickness min - max 0.5 - 2.6 mm
    ELV compliant (Article 4 - 2) YES
    Hazardous Goods No
    Operating Temperature -40 °C to +105 °C
    ROHS compliant Yes
    Specifications
    Country of Origin CN
    Customs Number 39269097
    GTIN-13 / EAN 4031026618135
    Packaging 1 - Qty 1000
    Packaging 1 - Type bag
    Packaging 1 - Weight (kg) 1.39kg
    Packaging 3 - Qty 7000
    Packaging 3 - Type carton
    Packaging 3 - Weight (kg) 9.73kg
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
