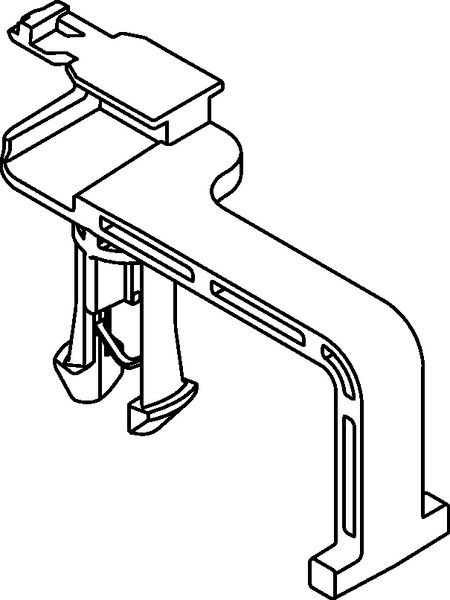

Connector clip, brown, 1000pcs.
Art.-Nr. 151-03197 | TRANSMNT90DEG11CC-PA46-BN |

Copied

    • Connector easily installed by simply pushing into place
    • Connection can be released (non-destructive)
    • Arrowhead locks into place for secure fixing at all times
    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Application The Connector Clips used here have been designed for electronic cables and cable sets used in the automotive industry. These parts are related to a connector and then secured to a surface depending on the requirement
    Colour Brown (BN)
    Material Polyamide 4.6 (PA46)
    PART DESCRIPTION TRANSMNT90DEG11CC-PA46-BN
    Pack Cont. 1000pcs.
    Package Content packed in carton
    Type TRANSMNT90DEG11CC
    Height (H) 35.4mm
    Length (L) 68.2mm
    Offset Length 41.5mm
    Panel Thickness max. 13.5 - 15.0mm
    Width (W) 26.6mm
    for Hole ⌀ (FH) 12.35 mm
    for Panel Thickness min - max 13.5 - 15 mm
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    Country of Origin US
    GTIN-13 / EAN 4031026644332
    Packaging 3 - Height (m) 0.20955m
    Packaging 3 - Length (m) 0.5175m
    Packaging 3 - Type box
    Packaging 3 - Volume (m³) 0.0344m³
    Packaging 3 - Width (m) 0.3175m
    ETIM 7.0 Key EC000449
    ETIM 8.0 Key EC000449
    ETIM 9.0 Key EC000449
    UNSPSC Key 31162305
