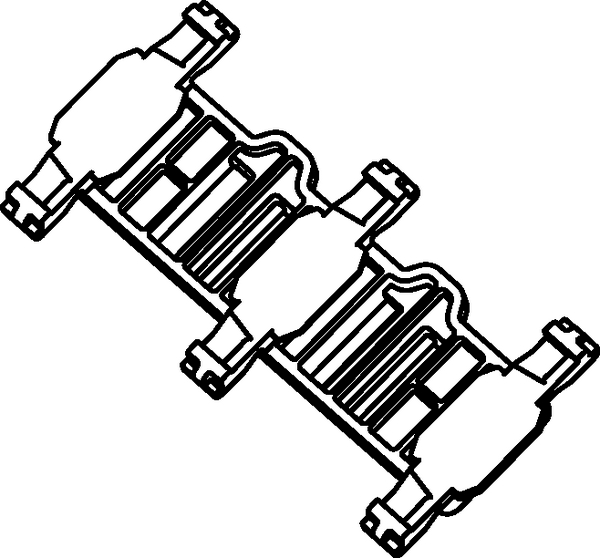

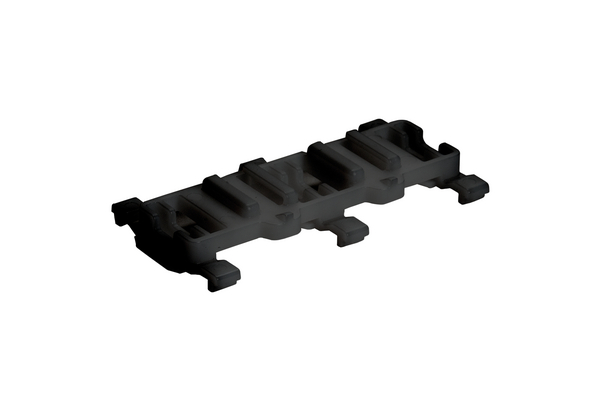

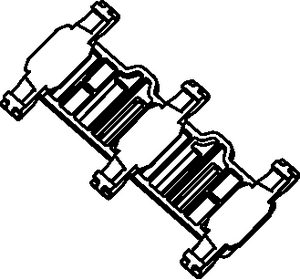

Connector clip for connector, EWCAP-005-11, black, 2000pcs.
Art.-Nr. 151-03937 | TRIPLE11CCBRKT-PA66HIRHSUV-BK |

Copied
Two-sided triple 11mm USCAR connector bank with 11mm slots for mounts provides exceptional versatility for mounting of connectors.

    Add to watchlist

    Request your individual offer now

     Request quote
    Downloads
    Colour Black (BK)
    Material Polyamide 6.6, high impact modified, heat and UV-stabilised (PA66HIRHSUV)
    PART DESCRIPTION TRIPLE11CCBRKT-PA66HIRHSUV-BK
    Pack Cont. 2000pcs.
    Package Content packed in bag
    Type TRIPLE11CCBRKT
    Type of connection USCAR11
    Height (H) 10.2mm
    Length (L) 73.0mm
    Weight/Unit 0.006kg
    Width (W) 35.8mm
    CE Certification No
    CSA Certified No
    ELV compliant (Article 4 - 2) YES
    Operating Temperature -40 °C to +105 °C
    ROHS compliant No
    UL Listed (US and Canada) No
    UL Listed (US and Canada) No
    UL Recognized (US and Canada) No
    UL Recognized (US) No
    UV-Stabilised Yes
    Country of Origin MX
    GTIN-13 / EAN 4031026696126
    Packaging 3 - Height (m) 0.0000762m
    Packaging 3 - Length (m) 0.609599999999999m
    Packaging 3 - Qty 2000
    Packaging 3 - Type bag
    Packaging 3 - Volume (m³) 0m³
    Packaging 3 - Weight (kg) 6.6kg
    Packaging 3 - Width (m) 0.152399999999999m
    Packaging 4 - Qty 48000
    Packaging 4 - Type pallet
    ETIM 7.0 Key EC000127
    ETIM 8.0 Key EC000127
    ETIM 9.0 Key EC000127
    UNSPSC Key 39121702
